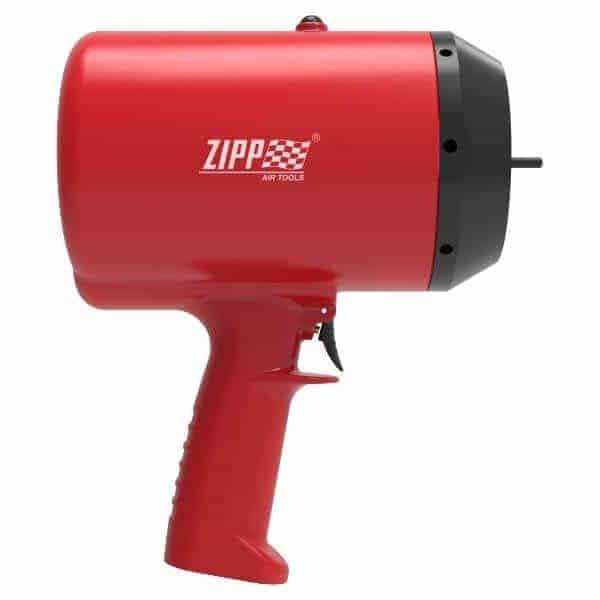

ZV50 Lock Bolt Installation Tool
The ZV50 Lock Bolt Installation Tool is a powerful and efficient pneumatic tool specifically designed for the fast and reliable installation of lock bolts. This tool is engineered to meet the rigorous demands of industrial applications, providing consistent performance and ease of use in high-volume settings. With its robust construction and ergonomic design, the ZV50 is suitable for heavy-duty and precision tasks, making it an essential tool for automotive, construction, and manufacturing professionals.
Key Features and Benefits
- Heavy-Duty Performance: The ZV50 is built to handle the most challenging lock bolt installation tasks, delivering high levels of force for secure fastening. Its pneumatic operation ensures fast and consistent installation, reducing manual effort and increasing efficiency in industrial settings.
- Durable Construction: Crafted from high-quality materials, the tool is designed for durability and longevity. Its solid build can withstand harsh environments and continuous use, making it ideal for high-demand applications.
- Ergonomic Design: The tool is designed with operator comfort in mind. It features an ergonomic grip that minimizes hand strain during extended use. The balanced weight distribution ensures better control and accuracy when installing lock bolts.
- Fast Installation: The pneumatic system allows for quick and efficient lock bolt installation, making the ZV50 perfect for production lines and high-volume projects where speed is critical.
- Low Maintenance: Designed for reliability, the ZV50 requires minimal maintenance, ensuring it remains in optimal working condition even after extensive use. This reduces downtime and provides consistent performance over time.
Applications
The ZV50 Lock Bolt Installation Tool is versatile and suited for various industrial applications:
- Automotive Assembly: Ideal for installing lock bolts in automotive frames, components, and body panels, ensuring secure and durable connections in vehicle assembly and repair.
- Construction and Infrastructure: Used in construction projects to fasten steel structures, bridges, and other large-scale components requiring high-strength lock bolts for safety and stability.
- Manufacturing: Heavy-duty lock bolts are essential in manufacturing processes where machinery, equipment, or structural components are secured, ensuring a solid and reliable assembly.
- Aerospace: Suitable for aerospace applications, where precision and reliability are essential. The ZV50 can install lock bolts in aircraft structures and components, adhering to stringent industry standards.
Why Choose the ZV50?
The ZV50 Lock Bolt Installation Tool offers unmatched performance for industrial applications that require secure and reliable lock bolt installations. Its heavy-duty construction, ergonomic design, and high-speed pneumatic operation make it a valuable asset for automotive, manufacturing, construction, and aerospace professionals. With the ZV50, users can expect fast, precise installations, increased productivity, and long-lasting tool durability.
The ZV50 is a top choice for projects demanding reliable lock bolt installation with minimal downtime. It ensures efficiency and consistent results.
Features
- ZIPP offers a range of standard fastener tools and high-performance ZIPP hydraulic powering to complement the larger diameter fixed grip lock bolt fasteners, which are suitable for numerous assembly applications in multiple industries.
- ZIPP installation equipment/tooling systems work with the fastener to pull and clamp the application together quickly and safely. A typical installation equipment system comprises a tool, nose assembly, hose set, and powering unit. The powerig drives the tool, and the nose assembly provides the installation link between the fastener and the tool. Installation tools and nose assemblies are designed to install specific fastener types and diameters—the fastener type, diameter, application, and intended usage determine the choice of the installation equipment system.
- The majority of the fasteners in the system have been designed to meet or exceed SAE Grade 5, ASTM A-325, and ISO (8.8) strength requirements, ensuring high clamp force, tensile, and shear strength depending on the application.
Specification:
- Stroke: 2.17(55) inch(mm)
- Pull Force: 76435(340) Lbf(KN)
- Pull Pressure: 7400(51) PSI(MPa)
- Return Pressure: 2900(20) PSI(MPa)
- Net Weight with Nose Assembly: 29.8(13.5) Ibs(kgs)
- Vibration: 8.6 m/sec
| Model | Stroke inch(mm) | Pull Force lbf(kN) | Pull Pressure psi(MPa) | Return Pressure psi(MPa) | Net Weight without Nose Assembly lbs(kgs) | Vibration m/sec |
| ZT10 | 1(25) | 13040(58) | 8000(55.2) | 3000(20.7) | 7.72(3.5) | 8.6 |
| ZT30 | 1.6(41) | 39340(175) | 8000(55.2) | 3000(20.7) | 17.6(8) | 8.6 |
| ZT51 | 2.56(65) | 78680(350) | 8000(55.2) | 3000(20.7) | 40.78(18.5) | 8.6 |
| ZV10 | 0.98(25) | 12365(55) | 7400(51) | 2900(20) | 7.7(3.5) | 2.5 |
| ZV30 | 1.6(41) | 39340(175) | 7400(51) | 2900(20) | 15.3(6.9) | 2.5 |
| ZV50 | 2.17(55) | 76435(340)1(25) | 7400(51) | 2900(20) | 29.8(13.5) | 8.6 |
