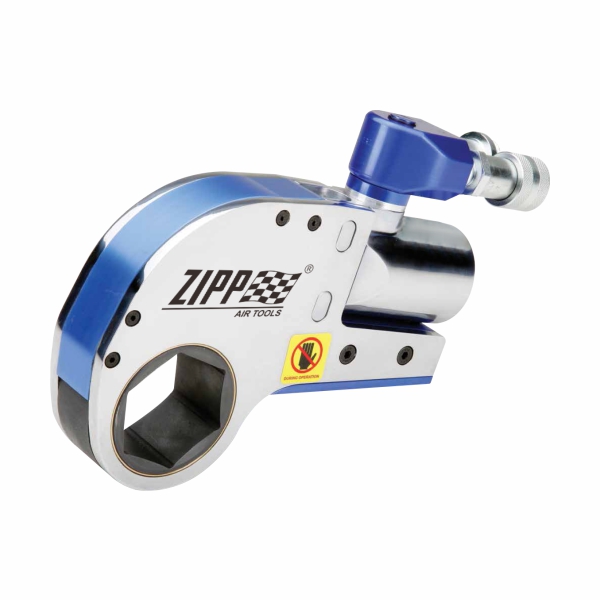

ZTL Direct Fit Hydraulic Wrench

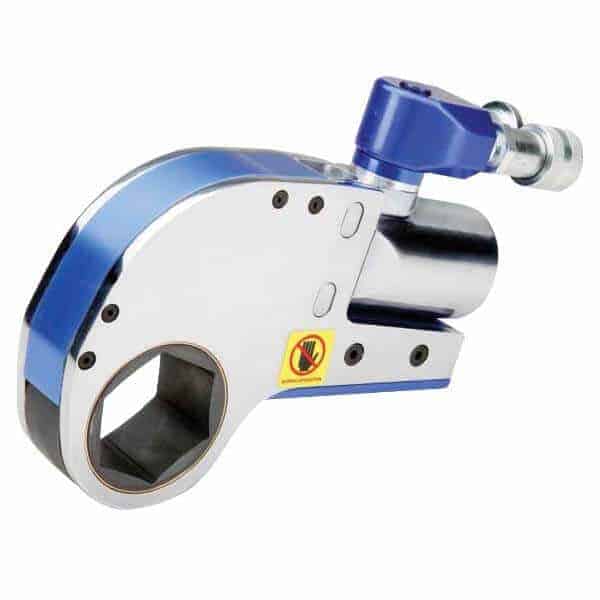

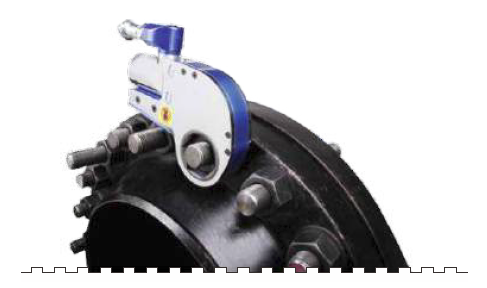

ZTL Series Low Clearance / Direct Fit Hydraulic Wrench
Designed to fit where no other tool will go. The Torque Link low clearance torque wrench is the best solution for tightening in a constrained space environment. The TL eliminates side loading issues through in-line reaction and offers a controlled torque accuracy of +/-3%. The integrated cylinder eliminates the need to match cylinders to links and ensures that every TL in your fleet is operationally ready to perform.

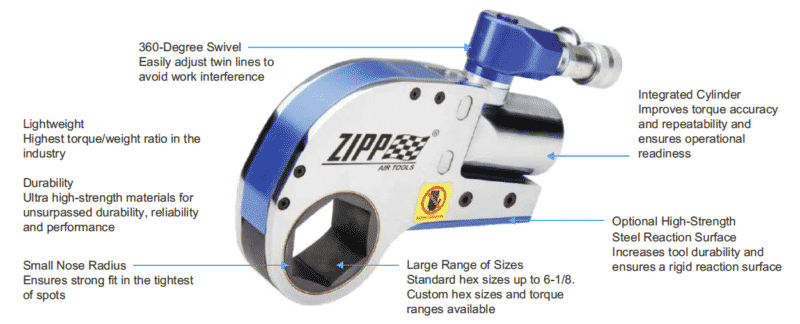

- Lightweight
Highest torque/weight ratio in the industry - Durability
Ultra high-strength materials for unsurpassed durability, reliability and performance - Small Nose Radius
Ensures strong fit in the tightest of spots - Large Range of Sizes
Standard hex sizes up to 6-1/8.
Custom hex sizes and torque ranges available - 360-Degree Swivel
Easily adjust twin lines to avoid work interference - Integrated Cylinder
Improves torque accuracy and repeatability and ensures operational readiness - Optional High-Strength
Steel Reaction Surface Increases tool durability and ensures a rigid reaction surface
Custom torque wrench solutions available D upon request.

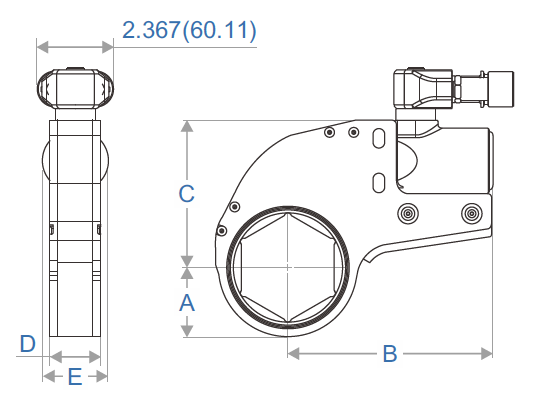

| Item Number with Swivel and Aluminum Reaction Surface | Item Number with Swivel and Steel Reaction Surface | Hexagon Size | Max Torque ft-lbs(Nm) | Dimension A inch(mm) | Dimension B inch(mm) | Dimension C inch(mm) | Dimension D inch(mm) | Dimension E inch(mm) | Weight with Swivel and Aluminum Reaction Surface Weight lbs(kgs) |
| ZTL210625 | ZTL210625-S | 1-1/16″ | 1336(1812) | 0.96(24.2) | 4.769(121.1) | 2.834(72) | 1.280(32.5) | 1.563(39.7) | 5(2.3) |
| ZTL227MM | ZTL227MM-S | 27mm | 1336(1812) | 0.96(24.2) | 4.769(121.1) | 2.834(72) | 1.280(32.5) | 1.563(39.7) | 5(2.3) |
| ZTL21250 | ZTL21250-S | 1-1/4″ | 1336(1812) | 1.07(27.2) | 4.775(121.3) | 2.807(71.3) | 1.264(32.1) | 1.563(39.7) | 5.1(2.3) |
| ZTL230MM | ZTL230MM-S | 30mm | 1336(1812) | 1.07(27.2) | 4.775(121.3) | 2.807(71.3) | 1.264(32.1) | 1.563(39.7) | 5.1(2.3) |
| ZTL214375 | ZTL214375-S | 1-7/16″ | 1451(1968) | 1.17(29.8) | 5.002(127.1) | 3(76.2) | 1.264(32.1) | 1.563(39.7) | 5.1(2.3) |
| ZTL234MM | ZTL234MM-S | 34mm | 1451(1968) | 1.17(29.8) | 5.002(127.1) | 3(76.2) | 1.264(32.1) | 1.563(39.7) | 5.1(2.3) |
| ZTL236MM | ZTL236MM-S | 36mm | 1451(1968) | 1.17(29.8) | 5.002(127.1) | 3(76.2) | 1.264(32.1) | 1.563(39.7) | 5.1(2.3) |
| ZTL21625 | ZTL21625-S | 1-5/8″ | 1499(2033) | 1.29(32.8) | 5.002(127.1) | 3.097(78.7) | 1.264(32.1) | 1.563(39.7) | 5.2(2.3) |
| ZTL241MM | ZTL241MM-S | 41mm | 1499(2033) | 1.29(32.8) | 5.002(127.1) | 3.097(78.7) | 1.264(32.1) | 1.563(39.7) | 5.2(2.3) |
| ZTL218125 | ZTL218125-S | 1-13/16 | 1543(2092) | 1.39(35.3) | 5.079(129) | 3.162(80.3) | 1.264(32.1) | 1.563(39.7) | 5.2(2.4) |
| ZTL246MM | ZTL246MM-S | 46mm | 1543(2092) | 1.39(35.3) | 5.079(129) | 3.162(80.3) | 1.264(32.1) | 1.563(39.7) | 5.2(2.4) |
| ZTL22000 | ZTL22000-S | 2″ | 1579(2141) | 1.47(37.3) | 5.073(128.9) | 3.223(81.9) | 1.264(32.1) | 1.563(39.7) | 5.3(2.4) |
| ZTL250MM | ZTL250MM-S | 50mm | 1579(2141) | 1.47(37.3) | 5.073(128.9) | 3.223(81.9) | 1.264(32.1) | 1.563(39.7) | 5.3(2.4) |
| ZTL221875 | ZTL221875-S | 2-3/16″ | 1640(2224) | 1.569(39.9) | 5.074(128.9) | 3.279(83.3) | 1.264(32.1) | 1.563(39.7) | 5.5(2.5) |
| ZTL255MM | ZTL255MM-S | 55mm | 1640(2224) | 1.569(39.9) | 5.074(128.9) | 3.279(83.3) | 1.264(32.1) | 1.563(39.7) | 5.5(2.5) |
| ZTL22375 | ZTL22375-S | 2-3/8″ | 1576(2137) | 1.7(43.2) | 5.221(132.6) | 3.479(88.4) | 1.264(32.1) | 1.563(39.7) | 5.7(2.6) |
| ZTL258MM | ZTL258MM-S | 58mm | 1576(2137) | 1.7(43.2) | 5.221(132.6) | 3.479(88.4) | 1.264(32.1) | 1.563(39.7) | 5.7(2.6) |
| ZTL260MM | ZTL260MM-S | 60mm | 1576(2137) | 1.7(43.2) | 5.221(132.6) | 3.479(88.4) | 1.264(32.1) | 1.563(39.7) | 5.7(2.6) |
| ZTL 418125 | ZTL 418125-S | 1-13/16″ | 3800(5153) | 1.47(37.3) | 6.065(154.1) | 3.929(99.8) | 1.875(47.6) | 2.036(51.7) | 9.2(4.2) |
| ZTL446MM | ZTL446MM-S | 46mm | 3800(5153) | 1.47(37.3) | 6.065(154.1) | 3.929(99.8) | 1.875(47.6) | 2.036(51.7) | 9.2(4.2) |
| ZTL42000 | ZTL42000-S | 2″ | 3956(5364) | 1.6(40.6) | 6.11(155.2) | 4.217(107.1) | 1.625(41.3) | 2.036(51.7) | 10(4.5) |
| ZTL450MM | ZTL450MM-S | 50mm | 3956(5364) | 1.6(40.6) | 6.11(155.2) | 4.217(107.1) | 1.625(41.3) | 2.036(51.7) | 10(4.5) |
| ZTL421875 | ZTL421875-S | 2-3/16″ | 3989(5409) | 1.72(43.7) | 6.182(157) | 4.209(106.9) | 1.625(41.3) | 2.036(51.7) | 10.5(4.8) |
| ZTL455MM | ZTL455MM-S | 55mm | 3989(5409) | 1.72(43.7) | 6.182(157) | 4.209(106.9) | 1.625(41.3) | 2.036(51.7) | 10.5(4.8) |
| ZTL42375 | ZTL42375-S | 2-3/8″ | 4007(5433) | 1.83(46.5) | 6.186(157.1) | 4.288(108.9) | 1.625(41.3) | 2.036(51.7) | 10.6(4.8) |
| ZTL458MM | ZTL458MM-S | 58mm | 4007(5433) | 1.83(46.5) | 6.186(157.1) | 4.288(108.9) | 1.625(41.3) | 2.036(51.7) | 10.6(4.8) |
| ZTL460MM | ZTL460MM-S | 60mm | 4007(5433) | 1.83(46.5) | 6.186(157.1) | 4.288(108.9) | 1.625(41.3) | 2.036(51.7) | 10.6(4.8) |
| ZTL 425625 | ZTL 425625-S | 2-9/16″ | 3988(5408) | 1.95(49.5) | 6.318(160.5) | 4.5(114.3) | 1.625(41.3) | 2.036(51.7) | 10.8(4.9) |
| ZTL465MM | ZTL465MM-S | 65mm | 3988(5408) | 1.95(49.5) | 6.318(160.5) | 4.5(114.3) | 1.625(41.3) | 2.036(51.7) | 10.8(4.9) |
| ZTL42750 | ZTL42750-S | 2-3/4″ | 4057(5501) | 2.04(51.8) | 6.393(162.4) | 4.52(114.8) | 1.625(41.3) | 2.036(51.7) | 10.9(5) |
| ZTL470MM | ZTL470MM-S | 70mm | 4057(5501) | 2.04(51.8) | 6.393(162.4) | 4.52(114.8) | 1.625(41.3) | 2.036(51.7) | 10.9(5) |
| ZTL429375 | ZTL429375-S | 3-1/8″ | 4086(5541) | 2.16(54.9) | 6.374(161.9) | 4.618(117.3) | 1.625(41.3) | 2.036(51.7) | 11(5) |
| ZTL43125 | ZTL43125-S | 3-1/8″ | 4220(5722) | 2.26(57.4) | 6.574(167) | 4.725(120) | 1.625(41.3) | 2.036(51.7) | 11.1(5) |
| ZTL475MM | ZTL475MM-S | 75mm | 4220(5722) | 2.26(57.4) | 6.574(167) | 4.725(120) | 1.625(41.3) | 2.036(51.7) | 11.1(5) |
| ZTL480MM | ZTL480MM-S | 80mm | 4220(5722) | 2.26(57.4) | 6.574(167) | 4.725(120) | 1.625(41.3) | 2.036(51.7) | 11.1(5) |
| ZTL82000 | ZTL82000-S | 2″ | 7531(10212) | 1.749(44.4) | 7.578(192.5) | 4.927(125.2) | 2.25(57.2) | 2.54(64.5) | 19.6(8.9) |
| ZTL850MM | ZTL850MM-S | 50mm | 7531(10212) | 1.749(44.4) | 7.578(192.5) | 4.927(125.2) | 2.25(57.2) | 2.54(64.5) | 19.6(8.9) |
| ZTL821875 | ZTL821875-S | 2-3/16″ | 7945(10773) | 1.85(47) | 7.708(195.8) | 4.927(125.2) | 2.25(57.2) | 2.54(64.5) | 19.6(8.9) |
| ZTL855MM | ZTL855MM-S | 55mm | 7945(10773) | 1.85(47) | 7.708(195.8) | 4.927(125.2) | 2.25(57.2) | 2.54(64.5) | 19.6(8.9) |
| ZTL82375 | ZTL82375-S | 2-3/8″ | 8100(10984) | 1.94(49.3) | 7.67(194.8) | 4.927(125.2) | 2.25(57.2) | 2.54(64.5) | 19.7(8.9) |
| ZTL858MM | ZTL858MM-S | 58mm | 8100(10984) | 1.94(49.3) | 7.67(194.8) | 4.927(125.2) | 2.25(57.2) | 2.54(64.5) | 19.7(8.9) |
| ZTL860MM | ZTL860MM-S | 60mm | 8100(10984) | 1.94(49.3) | 7.67(194.8) | 4.927(125.2) | 2.25(57.2) | 2.54(64.5) | 19.7(8.9) |
| ZTL825625 | ZTL825625-S | 2-9/16″ | 8165(11072) | 2.02(51.3) | 7.67(194.8) | 4.99(126.8) | 2.25(57.2) | 2.54(64.5) | 19.9(9) |
| ZTL865MM | ZTL865MM-S | 65mm | 8165(11072) | 2.02(51.3) | 7.67(194.8) | 4.99(126.8) | 2.25(57.2) | 2.54(64.5) | 19.9(9) |
| ZTL82750 | ZTL82750-S | 2-3/4″ | 8029(10887) | 2.15(54.6) | 7.762(197.2) | 5.11(129.8) | 2.25(57.2) | 2.54(64.5) | 20.2(9.2) |
| ZTL 870MM | ZTL 870MM-S | 70mm | 8029(10887) | 2.15(54.6) | 7.762(197.2) | 5.11(129.8) | 2.25(57.2) | 2.54(64.5) | 20.2(9.2) |
| ZTL829375 | ZTL829375-S | 2-15/16″ | 8095(10977) | 2.23(56.6) | 7.91(200.9) | 5.22(132.6) | 2.25(57.2) | 2.54(64.5) | 20.2(9.2) |
| ZTL83125 | ZTL83125-S | 3-1/8″ | 7921(10741) | 2.33(59.2) | 7.977(202.6) | 5.22(132.6) | 2.25(57.2) | 2.54(64.5) | 21(9.5) |
| ZTL875MM | ZTL875MM-S | 75mm | 7921(10741) | 2.33(59.2) | 7.977(202.6) | 5.22(132.6) | 2.25(57.2) | 2.54(64.5) | 21(9.5) |
| ZTL880MM | ZTL880MM-S | 80mm | 7921(10741) | 2.33(59.2) | 7.977(202.6) | 5.22(132.6) | 2.25(57.2) | 2.54(64.5) | 21(9.5) |
| ZTL83500 | ZTL83500-S | 3-1/2″ | 8351(11324) | 2.56(65) | 8.039(204.2) | 5.593(142.1) | 2.25(57.2) | 2.54(64.5) | 22(10) |
| ZTL885MM | ZTL885MM-S | 85mm | 8351(11324) | 2.56(65) | 8.039(204.2) | 5.593(142.1) | 2.25(57.2) | 2.54(64.5) | 22(10) |
| ZTL83875 | ZTL83875-S | 3-7/8″ | 8093(10974) | 2.78(70.6) | 8.278(210.3) | 5.753(146.1) | 2.25(57.2) | 2.54(64.5) | 23(10.4) |
| ZTL890MM | ZTL890MM-S | 90mm | 8093(10974) | 2.78(70.6) | 8.278(210.3) | 5.753(146.1) | 2.25(57.2) | 2.54(64.5) | 23(10.4) |
| ZTL 895MM | ZTL 895MM-S | 95mm | 8093(10974) | 2.78(70.6) | 8.278(210.3) | 5.753(146.1) | 2.25(57.2) | 2.54(64.5) | 23(10.4) |
| ZTL1429375 | ZTL1429375-S | 2-15/16″ | 12865(17445) | 2.439(62) | 9.247(234.9) | 6.25(158.8) | 2.9(73.7) | 3.1(78.7) | 36.7(16.6) |
| ZTL143125 | ZTL143125-S | 3-1/8″ | 13091(17751) | 2.537(64.4) | 9.373(238.1) | 6.486(164.8) | 2.9(73.7) | 3.1(78.7) | 38.7(17.5) |
| ZTL1475MM | ZTL1475MM-S | 75mm | 13091(17751) | 2.537(64.4) | 9.373(238.1) | 6.486(164.8) | 2.9(73.7) | 3.1(78.7) | 38.7(17.5) |
| ZTL1480MM | ZTL1480MM-S | 80mm | 13091(17751) | 2.537(64.4) | 9.373(238.1) | 6.486(164.8) | 2.9(73.7) | 3.1(78.7) | 38.7(17.5) |
| ZTL143500 | ZTL143500-S | 3-1/2″ | 14272(19353) | 2.73(69.3) | 9.455(240.2) | 6.486(164.8) | 2.75(69.9) | 3.1(78.7) | 37.1(16.8) |
| ZTL1485MM | ZTL1485MM-S | 85mm | 14272(19353) | 2.73(69.3) | 9.455(240.2) | 6.486(164.8) | 2.75(69.9) | 3.1(78.7) | 37.1(16.8) |
| ZTL143875 | ZTL143875-S | 3-7/8″ | 14140(19174) | 2.88(73.2) | 9.561(242.9) | 6.486(164.8) | 2.5(63.5) | 3.1(78.7) | 34.9(15.8) |
| ZTL1490MM | ZTL1490MM-S | 90mm | 14140(19174) | 2.88(73.2) | 9.561(242.9) | 6.486(164.8) | 2.5(63.5) | 3.1(78.7) | 34.9(15.8) |
| ZTL1495MM | ZTL1495MM-S | 95mm | 14140(19174) | 2.88(73.2) | 9.561(242.9) | 6.486(164.8) | 2.5(63.5) | 3.1(78.7) | 34.9(15.8) |
| ZTL144250 | ZTL144250-S | 4-1/4″ | 14172(19217) | 3.07(78) | 9.667(245.5) | 6.806(172.9) | 2.5(63.5) | 3.1(78.7) | 36(16.3) |
| ZTL14100MM | ZTL14100MM-S | 100mm | 14172(19217) | 3.07(78) | 9.667(245.5) | 6.806(172.9) | 2.5(63.5) | 3.1(78.7) | 36(16.3) |
| ZTL14105MM | ZTL14105MM-S | 105mm | 14172(19217) | 3.07(78) | 9.667(245.5) | 6.806(172.9) | 2.5(63.5) | 3.1(78.7) | 36(16.3) |
| ZTL144625 | ZTL144625-S | 4-5/8″ | 14030(19025) | 3.25(82.6) | 9.667(245.5) | 6.983(177.4) | 2.5(63.5) | 3.1(78.7) | 36.4(16.5) |
| ZTL14110MM | ZTL14110MM-S | 110mm | 14030(19025) | 3.25(82.6) | 9.667(245.5) | 6.983(177.4) | 2.5(63.5) | 3.1(78.7) | 36.4(16.5) |
| ZTL14115MM | ZTL14115MM-S | 115mm | 14030(19025) | 3.25(82.6) | 9.667(245.5) | 6.983(177.4) | 2.5(63.5) | 3.1(78.7) | 36.4(16.5) |
| ZTL203500 | ZTL203500-S | 3-1/2″ | 18052(24479) | 2.771(70.4) | 10.947(278.1) | 6.85(174) | 2.75(69.9) | 3.625(92.1) | 50.2(22.8) |
| ZTL2085MM | ZTL2085MM-S | 85mm | 18052(24479) | 2.771(70.4) | 10.947(278.1) | 6.85(174) | 2.75(69.9) | 3.625(92.1) | 50.2(22.8) |
| ZTL 203875 | ZTL 203875-S | 3-7/8″ | 19153(25971) | 3.011(76.5) | 10.987(279.1) | 7.092(180.1) | 2.75(69.9) | 3.625(92.1) | 50(22.7) |
| ZTL2090MM | ZTL2090MM-S | 90mm | 19153(25971) | 3.011(76.5) | 10.987(279.1) | 7.092(180.1) | 2.75(69.9) | 3.625(92.1) | 50(22.7) |
| ZTL2095MM | ZTL2095MM-S | 95mm | 19153(25971) | 3.011(76.5) | 10.987(279.1) | 7.092(180.1) | 2.75(69.9) | 3.625(92.1) | 50(22.7) |
| ZTL204250 | ZTL204250-S | 4-1/4″ | 20755(28144) | 3.322(84.4) | 11.580(294.1) | 7.46(189.5) | 2.75(69.9) | 3.625(92.1) | 55.8(25.3) |
| ZTL20100MM | ZTL20100MM-S | 100mm | 20755(28144) | 3.322(84.4) | 11.580(294.1) | 7.46(189.5) | 2.75(69.9) | 3.625(92.1) | 55.8(25.3) |
| ZTL20105MM | ZTL20105MM-S | 105mm | 20755(28144) | 3.322(84.4) | 11.580(294.1) | 7.46(189.5) | 2.75(69.9) | 3.625(92.1) | 55.8(25.3) |
| ZTL204625 | ZTL204625-S | 4-5/8″ | 20132(27299) | 3.455(87.8) | 11.682(296.7) | 7.667(194.7) | 2.75(69.9) | 3.625(92.1) | 57.1(25.9) |
| ZTL20110MM | ZTL20110MM-S | 110mm | 20132(27299) | 3.455(87.8) | 11.682(296.7) | 7.667(194.7) | 2.75(69.9) | 3.625(92.1) | 57.1(25.9) |
| ZTL20115MM | ZTL20115MM-S | 115mm | 20132(27299) | 3.455(87.8) | 11.682(296.7) | 7.667(194.7) | 2.75(69.9) | 3.625(92.1) | 57.1(25.9) |
| ZTL205000 | ZTL205000-S | 5″ | 20249(27458) | 3.731(94.8) | 11.925(302.9) | 7.837(199.1) | 2.75(69.9) | 3.625(92.1) | 58.4(26.5) |
| ZTL20120MM | ZTL20120MM-S | 120mm | 20249(27458) | 3.731(94.8) | 11.925(302.9) | 7.837(199.1) | 2.75(69.9) | 3.625(92.1) | 58.4(26.5) |
| ZTL205375 | ZTL205375-S | 5-3/8″ | 20000(27120) | 3.896(99) | 11.972(304.1) | 8.144(206.9) | 2.75(69.9) | 3.625(92.1) | 59(26.8) |
| ZTL20135MM | ZTL20135MM-S | 135mm | 20000(27120) | 3.896(99) | 11.972(304.1) | 8.144(206.9) | 2.75(69.9) | 3.625(92.1) | 59(26.8) |
| ZTL204250 | ZTL204250-S | 4-1/4″ | 31690(42972) | 3.367(85.5) | 12.466(316.6) | 8.313(211.2) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL30100MM | ZTL30100MM-S | 100mm | 31690(42972) | 3.367(85.5) | 12.466(316.6) | 8.313(211.2) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL30105MM | ZTL30105MM-S | 105mm | 31690(42972) | 3.367(85.5) | 12.466(316.6) | 8.313(211.2) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL304625 | ZTL304625-S | 4-5/8″ | 31690(42972) | 3.56(90.4) | 12.466(316.6) | 8.313(211.2) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL30110M | ZTL30110M-S | 110mm | 31690(42972) | 3.56(90.4) | 12.466(316.6) | 8.313(211.2) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL30115MM | ZTL30115MM-S | 115mm | 31690(42972) | 3.56(90.4) | 12.466(316.6) | 8.313(211.2) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL305000 | ZTL305000-S | 5″ | 30329(41126) | 3.82(97) | 12.872(327) | 8.371(212.6) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL30120MM | ZTL30120MM-S | 120mm | 30329(41126) | 3.82(97) | 12.872(327) | 8.371(212.6) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL305375 | ZTL305375-S | 5-3/8″ | 30985(42016) | 3.936(100) | 12.871(326.9) | 8.371(212.6) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL30135MM | ZTL30135MM-S | 135mm | 30985(42016) | 3.936(100) | 12.871(326.9) | 8.371(212.6) | 3.24(82.3) | 4.25(108) | 76(34.5) |
| ZTL305750 | ZTL305750-S | 5-3/4″ | 32279(43770) | 4.1(104.1) | 12.871(326.9) | 8.815(223.9) | 3.24(82.3) | 4.25(108) | 78(35.4) |
| ZTL306125 | ZTL306125-S | 6-1/8″ | 32031(43434) | 4.22(107.2) | 12.871(326.9) | 8.694(220.8) | 3.24(82.3) | 4.25(108) | 79(35.8) |
| ZTL30150MM | ZTL30150MM-S | 150mm | 32031(43434) | 4.22(107.2) | 12.871(326.9) | 8.694(220.8) | 3.24(82.3) | 4.25(108) | 79(35.8) |
| ZTL30155MM | ZTL30155MM-S | 155mm | 32031(43434) | 4.22(107.2) | 12.871(326.9) | 8.694(220.8) | 3.24(82.3) | 4.25(108) | 79(35.8) |
