ZT2420HS Split Type Lock Bolt Tool

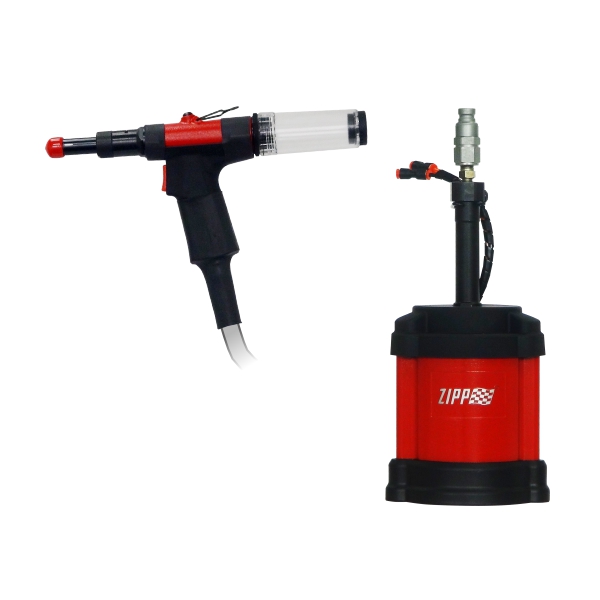

The ZT2420HSK Split Type Lock Bolt Tool is an advanced, industrial-grade fastening tool designed to secure and efficiently install lock bolts in various heavy-duty applications. This tool’s split-type design separates the power source from the handheld unit, providing improved flexibility and mobility when working in confined or hard-to-reach spaces. Built to handle the most challenging jobs, the ZT2420HSK is ideal for the construction, automotive, shipbuilding, and aerospace industries, where solid and reliable fasteners are essential.
Key Features and Benefits
- Split Type Design: The innovative split design separates the power unit from the handheld lock bolt tool, reducing the operator’s weight and enhancing maneuverability. This design is ideal for use in tight spaces and large structures, improving user comfort and efficiency.
- Heavy-Duty Lock Bolt Installation: The ZT2420HSK is specifically designed to install lock bolts. It provides high pull forces, ensuring a robust and secure fastening for demanding applications. It supports a variety of lock bolt sizes, making it versatile for different industrial needs.
- Pneudraulic Power System: The tool combines pneumatic and hydraulic power for maximum efficiency and control. The pneudraulic system delivers high torque and precise force distribution, ensuring consistent and reliable installation of lock bolts, even in rigid materials.
- Durable Construction: Constructed from high-quality materials, the ZT2420HSK is built to withstand harsh industrial environments. Its rugged design ensures long-lasting durability, even under continuous heavy-duty use.
- Ergonomic and Lightweight: The handheld unit is designed with ergonomics in mind, offering a comfortable grip that reduces operator fatigue during extended periods of use. The lightweight design of the tool’s handling component allows for better control and less strain on the user.
- Quick and Efficient Operation: With its high-speed cycling and rapid pull-to-set mechanism, the ZT2420HSK increases productivity by reducing the time needed to install lock bolts. This makes it ideal for high-volume production environments where speed and precision are critical.
- Low Maintenance: The tool is engineered for easy maintenance and long service life, minimizing downtime. Its simple design allows quick access to components for repairs or servicing, ensuring continuous operation with minimal interruptions.
Applications
The ZT2420HSK Split Type Lock Bolt Tool is designed for use in industries where lock bolt installation is critical for structural integrity and performance:
- Construction: Used to install lock bolts in steel structures, bridges, and other infrastructure projects where strong, permanent fasteners are required.
- Automotive and Heavy Equipment: Ideal for securing components in automotive manufacturing and heavy machinery, ensuring reliable and robust fastening for frames, chassis, and other structural parts.
- Aerospace Industry: In aerospace applications, the tool installs lock bolts in critical areas of aircraft assembly, ensuring maximum strength and durability for high-performance aircraft components.
- Shipbuilding: These are perfect for maritime applications where lock bolts are needed to secure ship structures, ensuring they can withstand the pressures and conditions of marine environments.
Why Choose the ZT2420HSK?
The ZT2420HSK Split Type Lock Bolt Tool offers a powerful and versatile solution for installing lock bolts in various industrial applications. Its split-type design allows for greater flexibility and ease of use, while the pneudraulic system ensures high-force, reliable installation. With its rugged construction and ergonomic design, the ZT2420HSK is built to handle the most demanding tasks, providing long-lasting performance and efficiency.
Whether you work in construction, automotive, aerospace, or shipbuilding, the ZT2420HSK is the ideal tool for fast and secure lock bolt installation. It ensures that your projects are completed with the highest quality and strength.
Features
- Forged & heat-treated aluminum alloy made hydraulic section for the best rigidity.
- Lightweight pistol head
- Easy to reach an inaccessible area
- Utility Pouch for Shoulder or Waist
The standard setup for 1M length
The standard setup for 3M length
Specification:
- Traction Power: 5200(2400) Ibf(kgf)
- Stroke Length: 51/64(20) inch(mm)
- Handle Net Weight: 2.75(1.25) Ibs(kgs)
- Nosepieces Equipped: Choose one of 202HM1, 202HC1, 202HM2 or 231HC2
- Max. Capacity: 1/4″ lock bolts
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
*Below specifications are measured with 1-meter length, 1/8″ I.D hydraulic hose
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Handle Net Weight lbs(kgs) | Nosepieces Equipped inch(mm) | Max. Capacity |
| ZT0518S | 1100(500) | 23/32(18) | 2.2(1) | 3/32(2.4)1/8(3.2) 5/32(4.0) | Max. 5/32″(4.0mm) structural rivets in all materials |
| ZT0920S | 2000(920) | 51/64(20) | 2.2(1) | 5/32(4.0)3/16(4.8) Monobolt 3/16(4.8) | Max. 3/16″(4.8mm) structural rivets in all materials |
| ZT1626S | 3500(1600) | 1-1/32(26) | 2.75(1.25) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT2420-8S | 5200(2400) | 51/64(20) | 2.75(1.25) | 5/16(7.8) | Max. 5/16″(7.8mm) structural rivets in all materials |
| ZT2420HSN | 5200(2400) | 51/64(20) | 2.75(1.25) | Need to purchase separately, compatible with HUCK® & AVDEL® nose assemblies | 1/4″ lock bolts |
| ZT2420HS | 5200(2400) | 51/64(20) | 2.75(1.25) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2420HSK | 5200(2400) | 51/64(20) | 2.75(1.25) | Kit includes 202HM1,202HC1,202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
HUCK® is the registered trademark of Alcoa Fastening System & Rings.
AVDEL® is the registered trademark of Stanley Engineered Fastening.
