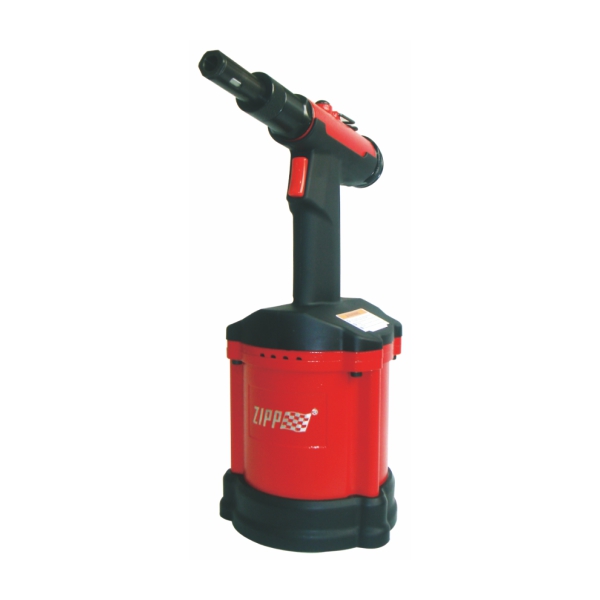

ZT2318HDK 1/4 inch Air Hydraulic Lock Bolt Tool Kit – With Digital Module
The ZT2318HDK 1/4-Inch Air Hydraulic Lock Bolt Tool Kit is a high-performance fastening solution for industrial, automotive, and aerospace applications. It provides superior efficiency and precision and features an integrated digital module for real-time monitoring. Designed to install lock bolts accurately and with minimal operator effort, the tool ensures consistent performance, reducing fastening errors.
Key Features and Benefits
1. Digital Module for Enhanced Precision
- Real-Time Monitoring: Displays fastening data, such as cycle counts and pressure levels, ensuring consistent bolt installation.
- Quality Control Integration: Helps maintain uniform torque and tension standards by tracking every operation.
- Data Storage & Connectivity: Logs fastening data for review or export, promoting quality assurance in critical applications.
2. Air Hydraulic Power for Reliable Performance
- High Force Output: Uses compressed air and hydraulic assistance to deliver maximum power with minimal effort.
- Fast Installation: Optimized for rapid installation of lock bolts, reducing cycle times on production lines.
- Minimal Operator Fatigue: Reduces hand strain and fatigue, even during extended use.
3. Durable Construction and Ergonomic Design
- Robust Build: Engineered with high-quality materials for heavy-duty use in demanding environments.
- Ergonomic Handle: Provides a comfortable grip, minimizing user fatigue during repetitive tasks.
- Compact Size: Facilitates easy access to confined spaces, perfect for automotive and industrial applications.
4. Complete Tool Kit for Versatile Applications
- Includes Multiple Accessories: Comes with interchangeable heads and adapters for various bolt sizes.
- Ready-to-Use: Includes essential components for immediate operation upon unboxing.
5. Applications Across Various Industries
- Automotive Assembly: Ideal for structural fastenings in vehicles.
- Aerospace Manufacturing: Ensures precise and reliable bolt installations for aircraft components.
- Industrial Construction: Perfect for heavy machinery assembly and plant maintenance.
Why Choose the ZT2318HDK 1/4-Inch Air Hydraulic Lock Bolt Tool Kit?
The ZT2318HDK offers unmatched performance with its air-hydraulic mechanism and digital module, setting a new standard in fastener installation. Its ability to track and monitor operations in real-time ensures that every lock bolt is installed consistently. Whether you’re in the automotive, aerospace, or manufacturing sector, this tool kit guarantees speed, reliability, and user comfort, making it a must-have for professionals.
Optimize your fastening process with the ZT2318HDK Air Hydraulic Lock Bolt Tool Kit—the ultimate solution for precision and efficiency.
- ZT2318H(D) / ZT2318B(D) comes with “ONE ” nose assembly only.
- ZT2318HK(D) included with “FOUR ” sets of lock bolt nose assemblies & 3/16”, 1/4” blind rivet conversion kit.
| Standard Nose Assembly | Optional Extended Nose Assembly |
 |  |
 For Fixed Grip Lock Bolts | |
| 3/16″ P/N: 202HC1 – Compatible with HUCK® tools 1/4″ P/N: 231HC2 – Compatible with HUCK® tools | 3/16″ P/N: 202HC1L – Compatible with HUCK® tools 1/4″ P/N: 231HC2L – Compatible with HUCK® tools |
 For Multi Grip Lock Bolts | |
| 3/16″ P/N: 202HM1 – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools | 3/16″ P/N: 202HM1L – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools |
 For Blind Bolts | |
| 1/4″ P/N: 202HB2 | |
 |  |
| Blind Rivet Conversion Kit | Blind Rivet Conversion Kit |
| P/N: 2318RS – 2pcs Jaws for 3/16″ or 1/4″ blind rivets | P/N: 2318RS-4 – 2pcs Jaws for 1/8″ or 5/12″ blind rivets P/N: 2318RS-8 – 3pcs Jaws for 5/16″ blind rivets |
Specification:
- Traction Power: 5000(2300) Ibf(kgf)
- Stroke Length: 18 mm
- Net Weight: 5.6(2.5) Ibs(kgs)
- Nosepieces Equipped: Kit includes 202HM1,202HC1,202HM2 231HC2 & 2318RS Nose Assemblies
- Max. Capacity: 1/4″ bolts bolt
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Nosepieces Equipped | Max. Capacity |
| ZT2318H | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2318HD | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2318HK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
| ZT2318HDK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
| ZT2318B | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
| ZT2318BD | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
