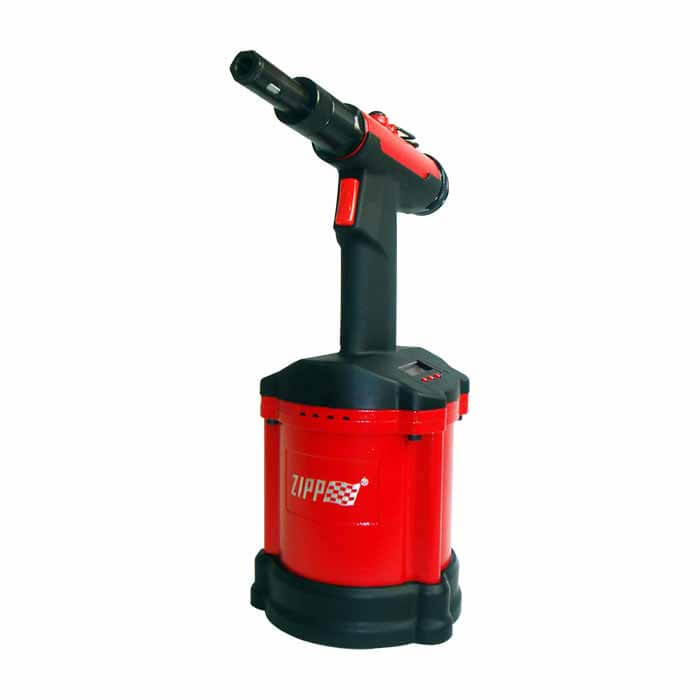

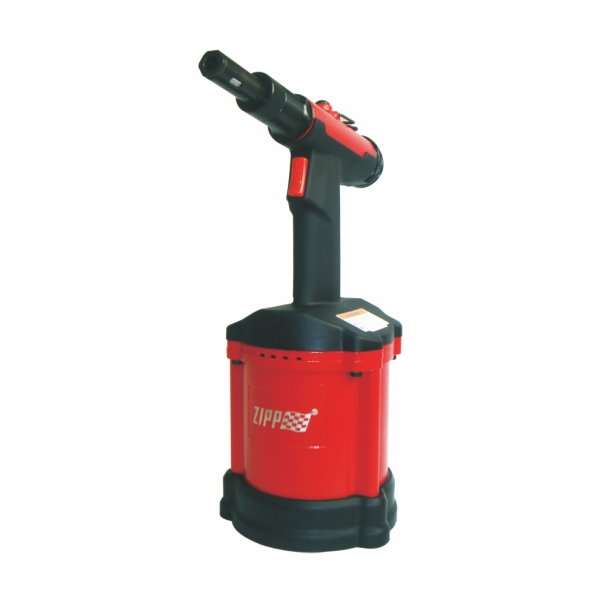

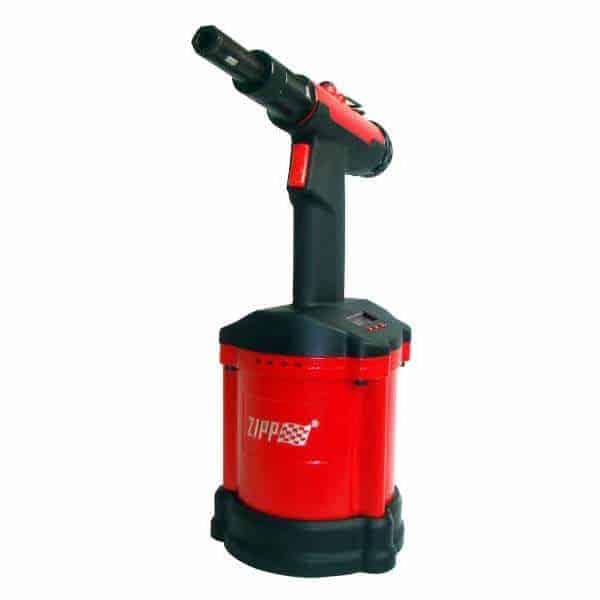

ZT2318HD 1/4 inch Air Hydraulic Lock Bolt Tool – With Digital Module
The ZT2318HD 1/4-Inch Air Hydraulic Lock Bolt Tool is a high-performance fastening solution designed to install lock bolts in demanding environments. Built to deliver exceptional power, speed, and reliability, this tool is ideal for applications in the aerospace, automotive, heavy machinery, and construction industries. Its air-hydraulic mechanism ensures smooth and efficient operation, reducing cycle times while maintaining consistent clamping force.
Key Features and Benefits
1. High-Efficiency Air-Hydraulic System
- Powerful Output: Provides the necessary force to secure 1/4-inch lock bolts quickly and accurately.
- Fast Cycle Times: Increases productivity with rapid and consistent fastening operations.
- Reliable Performance: Maintains even pressure for uniform clamping, ensuring secure joints under heavy loads.
2. Durable and Ergonomic Design for Operator Comfort
- Lightweight Construction: Reduces operator fatigue, enabling extended use.
- Ergonomic Grip: Provides comfort and control for precision fastening, even in tight spaces.
- Rugged Build: Designed with high-quality components for long-term durability in harsh environments.
3. Versatile Tool for Industrial Applications
- Compatible with Various Lock Bolts: Works seamlessly with various fasteners in aerospace, automotive, and construction industries.
- Adaptable to Complex Assemblies: Suitable for large-scale projects and detailed assembly work.
- Consistent Clamping Force: Ensures secure, vibration-resistant fastenings for critical operations.
4. Easy Maintenance and Longevity
- Simple Maintenance: Designed for quick disassembly and cleaning, ensuring minimal downtime.
- Durable Seals and Components: Minimizes wear, enhancing the tool’s operational life.
- Low Air Consumption: Increases efficiency and reduces operational costs over time.
Applications
- Aerospace Manufacturing and Repair: Fastening of structural components and panels.
- Automotive Assembly: Lock bolt installations in body frames and undercarriage components.
- Heavy Machinery Maintenance: Securing parts and components for durability under extreme conditions.
- Construction Projects: Fastening of structural elements in bridges, towers, and infrastructure.
Why Choose the ZT2318HD?
The ZT2318HD Air Hydraulic Lock Bolt Tool offers a powerful combination of speed, reliability, and ease of use, making it an essential tool for professionals. Its air-hydraulic system ensures fast and precise installations, while the durable, ergonomic design enhances operator comfort and productivity. Whether used in aerospace assembly lines or construction sites, this tool provides consistent fastening that meets the most demanding conditions.
Maximize your productivity with the ZT2318HD 1/4-Inch Air Hydraulic Lock Bolt Tool—engineered to deliver reliable, high-performance fastening solutions for any industrial challenge.
- ZT2318H(D) / ZT2318B(D) comes with “ONE ” nose assembly only.
- ZT2318HK(D) included with “FOUR ” sets of lock bolt nose assemblies & 3/16”, 1/4” blind rivet conversion kit.
| Standard Nose Assembly | Optional Extended Nose Assembly |
 |  |
 For Fixed Grip Lock Bolts | |
| 3/16″ P/N: 202HC1 – Compatible with HUCK® tools 1/4″ P/N: 231HC2 – Compatible with HUCK® tools | 3/16″ P/N: 202HC1L – Compatible with HUCK® tools 1/4″ P/N: 231HC2L – Compatible with HUCK® tools |
 For Multi Grip Lock Bolts | |
| 3/16″ P/N: 202HM1 – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools | 3/16″ P/N: 202HM1L – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools |
 For Blind Bolts | |
| 1/4″ P/N: 202HB2 | |
 |  |
| Blind Rivet Conversion Kit | Blind Rivet Conversion Kit |
| P/N: 2318RS – 2pcs Jaws for 3/16″ or 1/4″ blind rivets | P/N: 2318RS-4 – 2pcs Jaws for 1/8″ or 5/12″ blind rivets P/N: 2318RS-8 – 3pcs Jaws for 5/16″ blind rivets |
Specification:
- Traction Power: 5000(2300) Ibf(kgf)
- Stroke Length: 18 mm
- Net Weight: 5.6(2.5) Ibs(kgs)
- Nosepieces Equipped: Choose one of 202HM1, 202HC1, 202HM2 or 231HC2
- Max. Capacity: 1/4″ lock bolts
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Nosepieces Equipped | Max. Capacity |
| ZT2318H | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2318HD | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2318HK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
| ZT2318HDK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
| ZT2318B | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
| ZT2318BD | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
