ZT2318D 1/4 inch Air Hydraulic Riveter-W/Digital Module
Features
- Features with the most advanced patented digital module to enable operators know the rivet tool setting capacity instantly under various air supply condition and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool in proper interval.
- It will help to cease the controversy about warranty issue especially if the tool has been misused or abused with abnormal high air pressure which exceeds the design specification.
- Built with patented “Module units assembled in composite clam shell housing” for the ease of tool service.
- Patented “Broken mandrel vacuum collection system” for the cleanliness and safety of work area.
- Forged and heat treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.

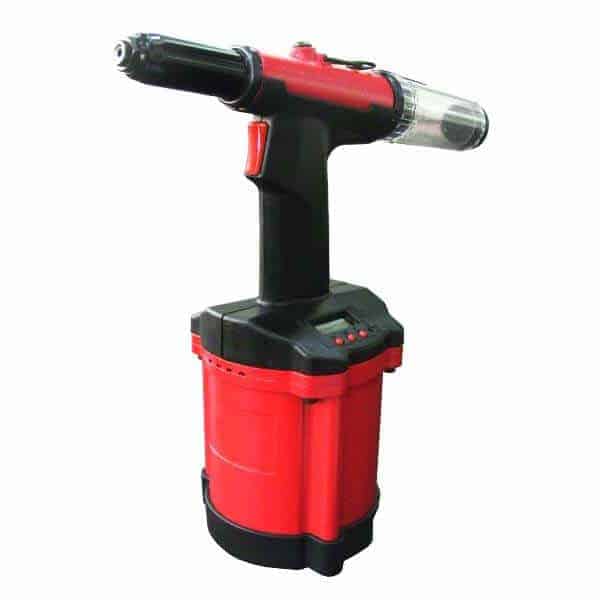

- Aluminum Alloy Forged Hydraulic Section
- Collection Bottle
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
- Vacuum ON/OFF Switch
- Spare Nose Pieces Port
Specification:
- Traction Power: 5000(2300) Ibf(kgf)
- Stroke Length: 18 mm
- Net Weight: 5.6(2.5) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Nosepieces Equipped: 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4)inch(mm)
- Max. 1/4″(6.4mm) structural rivets in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Nosepieces Equipped inch(mm) | Max. Capacity |
| ZT0520 | 1100(500) | 51/64(20) | 3.8(1.7) | 3/32(2.4)1/8(3.2) 5/32(4.0) | Max. 5/32″(4.0mm) structural rivets in all materials |
| ZT0520D | 1100(500) | 51/64(20) | 3.8(1.7) | 3/32(2.4)1/8(3.2) 5/32(4.0) | Max. 5/32″(4.0mm) structural rivets in all materials |
| ZT0715 | 1500(700) | 19/32(15) | 3.8(1.7) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) | Max. 3/16″(4.8mm) blind rivets in steel/steel |
| ZT0715D | 1500(700) | 19/32(15) | 3.8(1.7) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) | Max. 3/16″(4.8mm) blind rivets in steel/steel |
| ZT0922 | 2000(920) | 7/8(22) | 4.2(1.9) | 5/32(4.0)3/16(4.8) Monobolt 3/16(4.8) | Max. 3/16″(4.8mm) structural rivets in all materials |
| ZT0922D | 2000(920) | 7/8(22) | 4.2(1.9) | 5/32(4.0)3/16(4.8) Monobolt 3/16(4.8) | Max. 3/16″(4.8mm) structural rivets in all materials |
| ZT1218 | 2523(1150) | 23/32(18) | 4.2(1.9) | 5/32(4.0)3/16(4.8) 1/4(6.4) | Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1218D | 2523(1150) | 23/32(18) | 4.2(1.9) | 5/32(4.0)3/16(4.8) 1/4(6.4) | Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1528 | 3300(1500) | 1-1/8(28) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT1528D | 3300(1500) | 1-1/8(28) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT1725 | 3700(1700) | 63/64(25) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT1725D | 3700(1700) | 63/64(25) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT2021 | 4400(2000) | 53/64(21) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT2021D | 4400(2000) | 53/64(21) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT2021-8 | 4400(2000) | 53/64(21) | 5.6(2.5) | 5/16(7.8) | Max. 5/16″(7.8mm) blind rivets in steel/steel |
| ZT2021D-8 | 4400(2000) | 53/64(21) | 5.6(2.5) | 5/16(7.8) | Max. 5/16″(7.8mm) blind rivets in steel/steel |
| ZT2318 | 5000(2300) | 23/32(18) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT2318D | 5000(2300) | 23/32(18) | 5.6(2.5) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT2318-8 | 5000(2300) | 23/32(18) | 5.6(2.5) | 5/16(7.8) | Max. 5/16″(7.8mm) structural rivets in all materials |
| ZT2318D-8 | 5000(2300) | 23/32(18) | 5.6(2.5) | 5/16(7.8) | Max. 5/16″(7.8mm) structural rivets in all materials |
