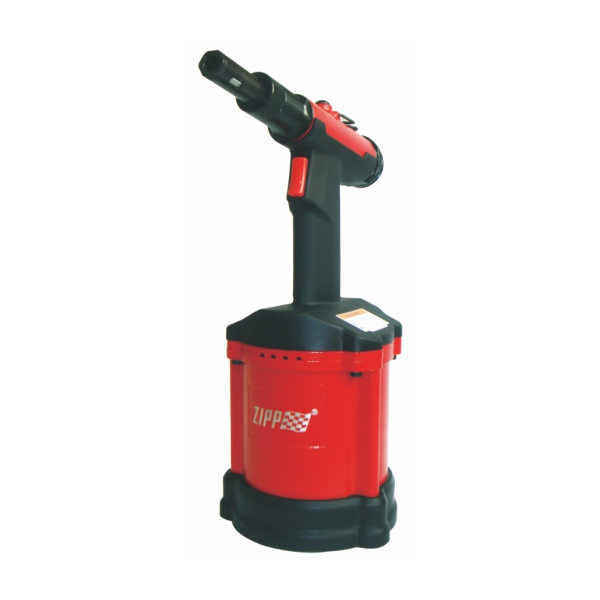

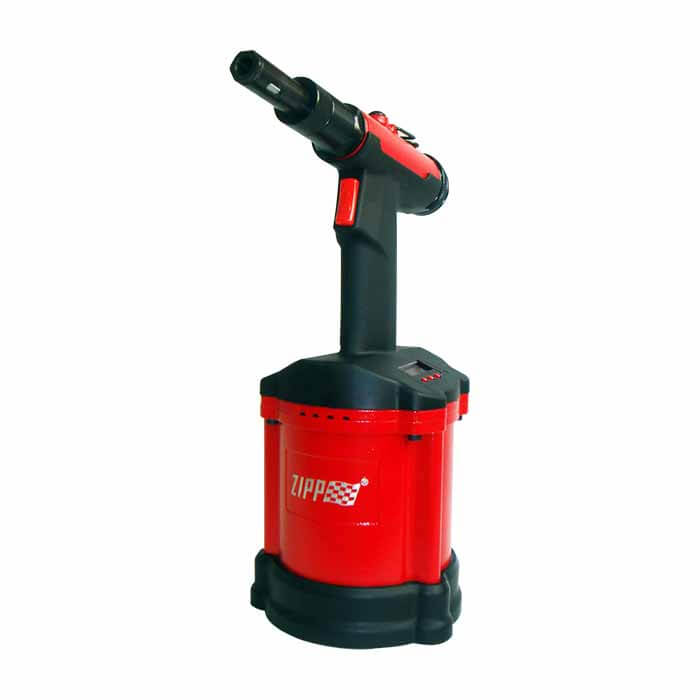

ZT2318BD 1/4 inch Air Hydraulic Blind Bolt Tool – With Digital Module
The ZT2318BD 1/4-Inch Air Hydraulic Blind Bolt Tool offers a cutting-edge solution for professionals who need precise, efficient, and reliable fastening. Equipped with a digital module, this tool provides real-time feedback and data tracking, ensuring critical applications’ highest accuracy and consistency. Its air-hydraulic operation delivers power and speed, making it ideal for heavy-duty use in aerospace, automotive, and construction industries.
Key Features and Benefits
1. Integrated Digital Module for Precision Monitoring
- Real-Time Data Feedback: Tracks every fastening operation for performance consistency.
- Digital Calibration Alerts ensure the correct force is applied to each bolt, reducing the risk of under or over-fastening.
- Data Storage & Transfer: Facilitates quality control by logging fastening data for further analysis and reporting.
2. Powerful Air-Hydraulic System for Maximum Performance
- High Output Force: This provides the necessary power to install 1/4-inch blind bolts easily, even in rigid materials.
- Rapid Cycle Time: Increases productivity by minimizing the time required for each fastening operation.
- Consistent Performance: Delivers reliable fastening without variation, ensuring solid and secure installations.
3. Ergonomic and User-Friendly Design
- Lightweight and Compact: Facilitates easy handling in tight or hard-to-reach areas.
- Ergonomic Grip: Reduces operator fatigue, allowing for extended use with comfort.
- Easy Maintenance: Designed with durable components that require minimal upkeep, enhancing tool longevity.
4. Versatile for Multiple Industries and Applications
- Automotive Assembly: Ideal for fastening blind bolts in vehicle frames, body panels, and undercarriages.
- Aerospace Manufacturing: Ensures precision fastening for airframe and structural components.
- Construction & Heavy Equipment: Perfect for securing structural elements and machinery parts.
Applications
- Blind Bolt Installation in Automotive Assembly Lines
- Aircraft Manufacturing and Repair
- Construction of Bridges, Towers, and Infrastructure
- Heavy Machinery Assembly and Maintenance
Why Choose the ZT2318BD?
The ZT2318BD 1/4-Inch Air Hydraulic Blind Bolt Tool sets itself apart with its integrated digital module, enabling real-time monitoring for quality assurance. Whether in critical aerospace operations or fast-paced automotive production, this tool ensures accurate, consistent, and efficient fastening. Its robust air-hydraulic system and intelligent technology provide unmatched performance for professional users.
Bring your fastening operations to the next level with the ZT2318BD Air Hydraulic Blind Bolt Tool—your ultimate solution for fast, precise, and traceable blind bolt installations.
- ZT2318H(D) / ZT2318B(D) comes with “ONE ” nose assembly only.
- ZT2318HK(D) included with “FOUR ” sets of lock bolt nose assemblies & 3/16”, 1/4” blind rivet conversion kit.
| Standard Nose Assembly | Optional Extended Nose Assembly |
 |  |
 For Fixed Grip Lock Bolts | |
| 3/16″ P/N: 202HC1 – Compatible with HUCK® tools 1/4″ P/N: 231HC2 – Compatible with HUCK® tools | 3/16″ P/N: 202HC1L – Compatible with HUCK® tools 1/4″ P/N: 231HC2L – Compatible with HUCK® tools |
 For Multi Grip Lock Bolts | |
| 3/16″ P/N: 202HM1 – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools | 3/16″ P/N: 202HM1L – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools |
 For Blind Bolts | |
| 1/4″ P/N: 202HB2 | |
 |  |
| Blind Rivet Conversion Kit | Blind Rivet Conversion Kit |
| P/N: 2318RS – 2pcs Jaws for 3/16″ or 1/4″ blind rivets | P/N: 2318RS-4 – 2pcs Jaws for 1/8″ or 5/12″ blind rivets P/N: 2318RS-8 – 3pcs Jaws for 5/16″ blind rivets |
Specification:
- Traction Power: 5000(2300) Ibf(kgf)
- Stroke Length: 18 mm
- Net Weight: 5.6(2.5) Ibs(kgs)
- Nosepieces Equipped: P/N 202HB2
- Max. Capacity: 1/4″ blind bolt
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Nosepieces Equipped | Max. Capacity |
| ZT2318H | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2318HD | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2318HK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
| ZT2318HDK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
| ZT2318B | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
| ZT2318BD | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
