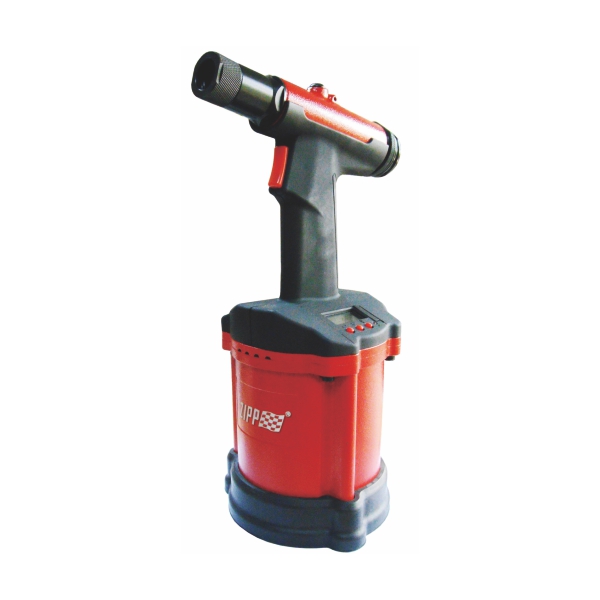

ZT2318-HAD Air Hydraulic Lock Bolts Tool – With Digital Module
The ZT2318-HAD Air Hydraulic Lock Bolts Tool with a digital module offers advanced fastening capabilities for industrial applications where precision, speed, and real-time monitoring are essential. This air-hydraulic tool is designed to install high-accuracy lock bolts, making it ideal for aerospace, automotive, manufacturing, and heavy construction industries. Its digital module ensures better control, traceability, and quality management by providing live feedback on performance metrics.
Key Features and Benefits
1. Integrated Digital Module for Real-Time Monitoring
- Precise Control and Feedback: Displays fastening parameters such as pressure, cycle time, and clamping force on the digital screen.
- Data Logging for Quality Assurance: Saves traceability and performance data for post-operation analysis.
- Alarm Alerts: Detects errors or abnormalities, ensuring the fasteners meet required standards.
2. High-Efficiency Air-Hydraulic System
- Powerful Torque Output: Ensures secure installation of lock bolts, delivering consistent performance.
- Fast Actuation: Reduces cycle time, increasing operational efficiency.
- Minimal Air Consumption: Optimizes pneumatic efficiency, cutting down operational costs.
3. Ergonomic and Durable Design
- Lightweight and Compact Body: Reduces operator fatigue, allowing for extended use.
- Ergonomic Handle: Provides a secure grip for easy operation, even in confined spaces.
- Heavy-Duty Construction: Built with high-quality materials to withstand demanding environments.
4. Smart Maintenance and Longevity
- Diagnostic Tools via Digital Module: Detects maintenance needs before failure, minimizing downtime.
- Durable Internal Seals: Increases operational lifespan with fewer breakdowns.
- Accessible Access Components: Designed for quick disassembly and cleaning, reducing service time.
Applications
- Aerospace Assembly: Ensuring the precision installation of structural fasteners.
- Automotive Production Lines: Lock bolt installations for chassis and body components.
- Heavy Machinery Manufacturing: Fastening parts subject to high stress and vibration.
- Construction Industry: Securing steel frames, bridge elements, and other structural components.
Digital Module Advantages
The ZT2318-HAD goes beyond simple fastening by integrating innovative technology that enhances traceability and quality management:
- Data Transfer Options: Export data to external systems for audits and analysis.
- Configurable Settings: Adjust thresholds and parameters for different bolt types and materials.
- Improved Quality Control: Ensure every fastening operation meets exact specifications.
Why Choose the ZT2318-HAD?
With its advanced digital module, the ZT2318-HAD Air Hydraulic Lock Bolts Tool bridges the gap between manual tools and modern, data-driven production needs. It provides precision, reliability, and traceability, offering peace of mind for industries requiring high-quality fastenings. Whether used on aircraft assembly lines, automotive factories, or construction sites, this tool ensures your fastening jobs are completed to the highest standards.
Maximize performance and ensure quality with the ZT2318-HAD Lock Bolts Tool — your reliable solution for fast, accurate, and traceable fastening operations.
Features
- Compatible with ” ORIGINAL ” HUCK® – C6L® & Magna Grip® , AVDEL® – Avdelok® & Maxlok® lock bolt and Magna-Lok® and BOM® nose assemblies.
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Ergonomic texture-coated composite housing for operator’s
- Aluminum Alloy Forged Hydraulic Section
- Ergonomic Trigger
- Composite Clam Shell Housing
- USB Port (Digital Model)
- LCD Module (Digital Model)
- Rubber Boot
Specification:
- Traction Power: 5000(2300) Ibf(kgf)
- Stroke Length: 18 mm
- Net Weight: 5.6(2.5) Ibs(kgs)
- Nosepieces Equipped: Compatible with original HUCK®& AVDEL® nose assemblies
- Max. Capacity: 1/4″ lock bolts
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Nosepieces Equipped inch(mm) | Max. Capacity |
| ZT2318-HA | 5000(2300) | 23/32(18) | 5.6(2.5) | Compatible With the original HUCK® & AVDEL® nose assemblies | 1/4″ lock bolts |
| ZT2318-HAD | 5000(2300) | 23/32(18) | 5.6(2.5) | Compatible With the original HUCK® & AVDEL® nose assemblies | 1/4″ lock bolts |
C6L®, Magna-Grip®, Magna-Lok®, and BOM® are registered trademarks of Alcoa Fastening Systems & Rings.
Avbolt®, Monobolt®, Maxlok®, and Avdelok® are registered trademarks of Stanley Engineered Fastening.
