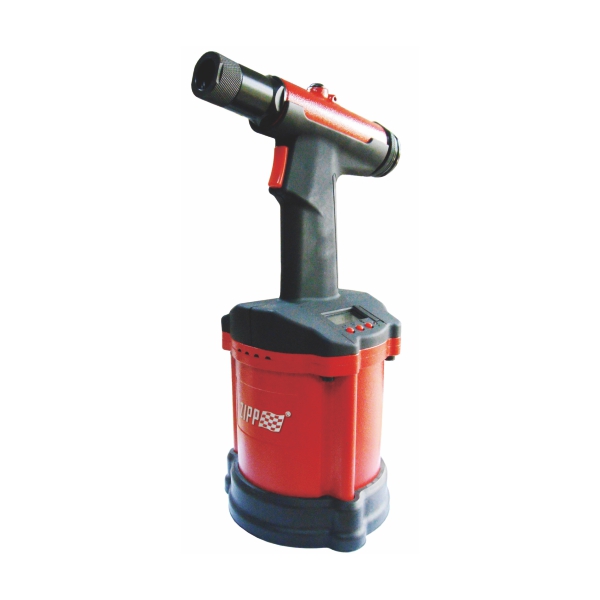

ZT2318-HA Air Hydraulic Lock Bolt Tool
The ZT2318-HA Air Hydraulic Lock Bolt Tool is engineered for heavy-duty fastening applications, delivering superior performance for industries that demand high clamping force and fast cycle times. This tool offers exceptional efficiency in installing lock bolts, making it ideal for aerospace, automotive, heavy machinery, and construction industries. Its air-hydraulic design ensures smooth and rapid operation, minimizing operator fatigue and maximizing productivity.
Key Features and Benefits
1. High-Efficiency Air-Hydraulic System
- Powerful Clamping Force: Ensures reliable fastening in high-stress applications.
- Fast and Smooth Actuation: Reduces cycle times, enhancing productivity in assembly lines.
- Optimized Air Consumption: Improves pneumatic efficiency, reducing operational costs.
2. Robust and Ergonomic Design
- Lightweight Construction: Facilitates easy handling, minimizing operator fatigue.
- Ergonomic Handle: Provides a comfortable grip for long-term usage without strain.
- Heavy-Duty Build: Designed to withstand harsh industrial environments with minimal wear.
3. Versatile and Adaptable for Various Applications
- Supports Multiple Lock Bolt Sizes: Compatible with various fasteners to suit diverse needs.
- Compact Design: Ideal for use in confined spaces or hard-to-reach areas.
- Quick Setup and Operation: Reduces downtime, enabling faster job completion.
4. Low Maintenance for Maximum Uptime
- Durable Seals and Components: Built to last with minimal servicing requirements.
- Quick-Access Parts: Allows easy disassembly for routine maintenance or repairs.
- Reliable Air-Hydraulic Mechanism: Ensures smooth operation and long-term durability.
Applications
- Aerospace: Installation of structural lock bolts for airframes.
- Automotive: Securing chassis, body panels, and engine components.
- Heavy Machinery: Fastening critical parts in industrial equipment.
- Construction: Installing lock bolts for steel frames, bridges, and large infrastructure projects.
Why Choose the ZT2318-HA Air Hydraulic Lock Bolt Tool?
The ZT2318-HA provides an excellent balance of power, speed, and reliability, meeting the rigorous demands of modern industrial applications. Its user-friendly operation ensures smooth performance even in demanding environments, while its robust design guarantees durability under heavy usage.
Whether you need a reliable tool for precision fastening in tight spaces or high-strength locking in large assemblies, the ZT2318-HA is your ideal solution.
Equip your workshop or production line with the ZT2318-HA Air Hydraulic Lock Bolt Tool—engineered for efficiency, durability, and optimal performance.
Features
- Compatible with ” ORIGINAL ” HUCK® – C6L® & Magna Grip® , AVDEL® – Avdelok® & Maxlok® lock bolt and Magna-Lok® and BOM® nose assemblies.
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Ergonomic texture-coated composite housing for operator’s
- Aluminum Alloy Forged Hydraulic Section
- Ergonomic Trigger
- Composite Clam Shell Housing
- USB Port (Digital Model)
- LCD Module (Digital Model)
- Rubber Boot
Specification:
- Traction Power: 5000(2300) Ibf(kgf)
- Stroke Length: 18 mm
- Net Weight: 5.6(2.5) Ibs(kgs)
- Nosepieces Equipped: Compatible with original HUCK®& AVDEL® nose assemblies
- Max. Capacity: 1/4″ lock bolts
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Nosepieces Equipped inch(mm) | Max. Capacity |
| ZT2318-HA | 5000(2300) | 23/32(18) | 5.6(2.5) | Compatible With the original HUCK® & AVDEL® nose assemblies | 1/4″ lock bolts |
| ZT2318-HAD | 5000(2300) | 23/32(18) | 5.6(2.5) | Compatible With the original HUCK® & AVDEL® nose assemblies | 1/4″ lock bolts |
C6L®, Magna-Grip®, Magna-Lok®, and BOM® are registered trademarks of Alcoa Fastening Systems & Rings.
Avbolt®, Monobolt®, Maxlok®, and Avdelok® are registered trademarks of Stanley Engineered Fastening.
