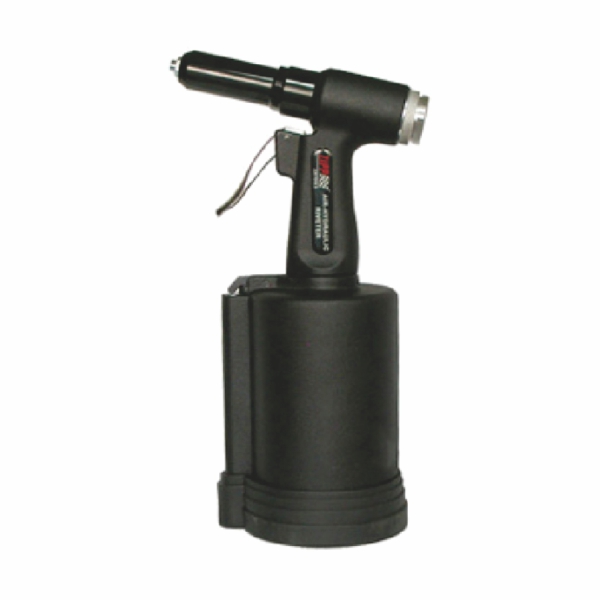

ZT1918T 1/4 inch Air Hydraulic Riveter
Economy Riveter
Specification:
- Traction Power: 4200(1900) lbf(kgf)
- Stroke Length: 23/32(18) inch(mm)
- Net Weight: 4.3(2) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Avg. Air Cons.: 0.125(3.5) cu.ft/stroke
- Min. Hose Size: 3/8(10) Inch(mm)
- Sound Pressure: 70 dBA
- Vibration: <2.5 m/s2
- Nosepieces Equipped: 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8)1/4(6.4) inch(mm)
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Operating Air Pressure psi(bar) | Avg. Air Cons. cu.ft/stroke | Min. Hose Size inch(mm) | Sound Pressure dB(A) | Vibration m/s² | Nosepieces Equipped inch(mm) |
| ZPR1016T | 2304(1045) | 5/8(16) | 3.262(1.48) | 90(6.2) | 0.125(3.5) | 1/4(6.4) | 70 | <2.5 | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
| ZT1918T | 4200(1900) | 23/32(18) | 4.3(2) | 90(6.2) | 0.125(3.5) | 3/8(10) | 70 | <2.5 | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8)1/4(6.4) |
