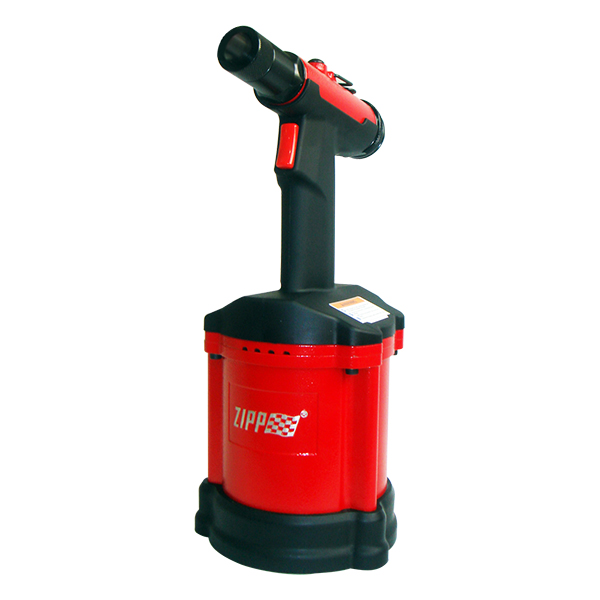

ZT1912CM Aviation Lock Bolt and Blind Bolt Installation Tools
The ZT1912CM Aviation Lock Bolt and Blind Bolt Installation Tools are precision-engineered to meet the demanding standards of the aerospace industry. These tools are designed for the installation of lock bolts and blind bolts, which are critical fasteners used in the assembly of aircraft structures. Offering reliability, durability, and ease of use, the ZT1912CM is an essential tool for aerospace professionals engaged in aircraft construction, maintenance, and repair.
Key Features and Benefits
- Precision Engineering: The ZT1912CM is meticulously crafted to ensure the precise installation of lock and blind bolts. This level of precision is essential in aerospace applications, where every fastener’s integrity directly impacts the aircraft’s safety and performance.
- Versatile Compatibility: Designed to work with a wide range of lock bolts and blind bolts, the ZT1912CM is compatible with various sizes and types of fasteners commonly used in the aerospace industry. This versatility makes it a go-to tool for aircraft assembly and repair phases.
- Durable Construction: Built from high-grade materials, the ZT1912CM is engineered to withstand the rigors of frequent use in demanding environments. Its durable construction ensures long-term reliability, making it a valuable investment for aerospace professionals.
- Ergonomic Design: The ZT1912CM features an ergonomic design that prioritizes user comfort and reduces fatigue during prolonged use. Its well-balanced structure and comfortable grip make it easy to handle, even when working in confined spaces or on complex assemblies.
- Efficient Operation: The ZT1912CM is designed for efficiency, enabling fast and secure installation of lock and blind bolts. This feature benefits high-volume production environments, where time savings can significantly impact productivity.
- Precision Control: The tool provides precise control over the installation process, ensuring that each fastener is installed according to aerospace standards. This precision helps prevent issues such as over-torquing or improper seating of the bolts.
- Low Maintenance: The ZT1912CM is designed for easy maintenance, with components that are accessible and easy to service. This feature minimizes downtime and ensures the tool remains in optimal working condition over its lifespan.
Applications
The ZT1912CM Aviation Lock Bolt & Blind Bolt Installation Tools are specifically designed for use in the aerospace industry, including applications such as:
- Aircraft Assembly is essential for installing critical fasteners in aircraft structures, ensuring the secure and reliable assembly of components such as wings, fuselage, and control surfaces.
- Maintenance and Repair: Ideal for use in aircraft maintenance and repair operations, where precise and reliable fastening is required to restore structural integrity.
- Aerospace Manufacturing: Suitable for producing various aerospace components, where installing lock bolts and blind bolts is a vital part of the manufacturing process.
- Military and Defense Applications: Used in the assembly and maintenance of military aircraft and other defense-related aerospace projects, where precision and reliability are paramount.
Why Choose the ZT1912CM Aviation Lock Bolt & Blind Bolt Installation Tools?
The ZT1912CM Aviation Lock Bolt & Blind Bolt Installation Tools are designed to meet the exacting standards of the aerospace industry, offering precision, durability, and ease of use. Whether you are involved in aircraft assembly, maintenance, or manufacturing, the ZT1912CM provides the reliability and performance you need to ensure the safety and integrity of every fastener. With its ergonomic design and efficient operation, this tool enhances productivity and ensures that every installation is performed to the highest standards.
Features
- The ZT1914CM is an air hydraulic Lock Bolt and blind Bolt tool designed especially for installing CherryMax® Lock Bolts and blind Bolts.
- This tool utilizes straight, offset, and right angle pulling heads, which can install -4, -5, -6 & -8 diameter CherryMax® Lock Bolt & Blind Bolt in all head styles, materials, and grip lengths. ( -8 diameter in Aluminum only )
- Features with the most advanced patented digital module enable operators to instantly know the rivet tool setting capacity under various air supply conditions and the rivet setting cycles performed during their working period. ( Optional, model with “D” means with digital module )
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity. - Swivel air inlet design for maneuverability works.
The standard setup for 1M length
The standard setup for 3M length
Specification:
- Traction Power: 4200(1900) Ibf(kgf)
- Stroke Length: 31/64(12) inch(mm)
- Net Weight without nose assembly: 2.75(1.25) Ibs(kgs) handle assembly
- Max. Capacity: -4, -5, -6, and -8 diameter CherryMax® Lock Bolt & Blind Bolt in all head styles, materials, and grip lengths ( -8 diameter in Aluminum only) CherryMax® is the registered trademark of Cherry Aerospace LLC.
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
*Below specifications are measured with 1 meter length, 1/8″ I.D hydraulic hose
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight without nose assembly lbs(kgs) | Max. Capacity |
| ZT1914CM | 4200(1900) | 9/16(14) | 5.7(2.6) | -4, -5, -6 & -8 diameter CherryMax® Lock Bolt & Blind Bolt in all head styles, materials and grip lengths. ( -8 diameter in Aluminum only) |
| ZT1914CMD | 4200(1900) | 9/16(14) | 5.7(2.6) | |
| ZT1912CM-1 | 4200(1900) | 31/64(12) | 2.75(1.25) | |
| ZT1912CM-3 | 4200(1900) | 31/64(12) | 2.75(1.25) |
*Operating Air Pressure: 90PSI/6.2bar *Air Inlet Size: 1/4 inch-NPT/PT *Min. Hose Size: 3/8″(10mm)
PULLING HEADS AVAILABLE FOR THE ZT1914CM & ZT1912CM INSTALLATION TOOLS
Pulling heads are not furnished with riveter and must be ordered separately.
H84A-8 Straight Pulling Head

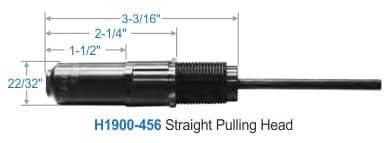

H1900-456 Straight Pulling Head

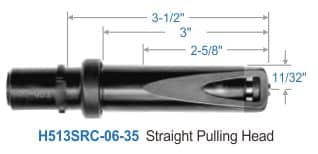

H513SRC-06-35 Straight Pulling Head

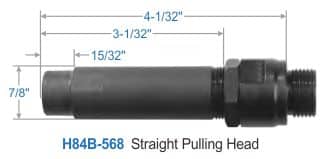

H84B-568 Straight Pulling Head
H563-4B, H563-5B, H563-6B Offset Pulling Head
H562-6B, H562-8B Offset Pulling Head

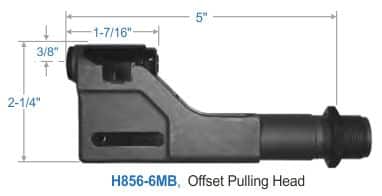

H856-6MB Offset Pulling Head

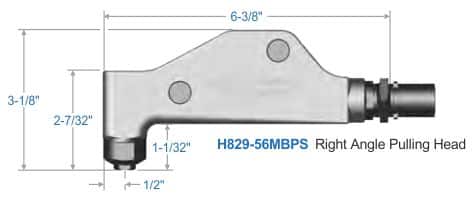

H829-56MBPS Right Angle Pulling Head
CherryMax® is the registered trademark of Cherry Aerospace LLC.
| Fastener Type | Pulling Head Type | Tool Part Number | Adaptor | Diameter | |
| MAXIBOLT® | MAXIBOLT® S TYPE | MAXIBOLT® U TYPE | |||
| Straight | H83B-5MB | H83B-5MBU | None | -05 | |
| H83B-6MB | H83B-6MBU | None | -06 | ||
| H84A-8MB | H84A-8MBU | Yes | -08 | ||
| Offset | H856-6MB | H856-6MB+856-003 | None | -06 | |
| Right Angle | H829-5MB | H829-5MBU | None | -05 | |
| H829-6MB | H829-6MBU | None | -06 | ||
| H829-8MB | H829-8MBU | None | -08 | ||
| Lockbolt | Straight | H513, H513S, H513SR | None | -4, -5, -6, -8 | |
| Offset | H563-4B/5B/6B | None | -4, -5,-6 | ||
| H562-6B/8B | Yes | -6, -8 | |||
| MAXIBOLT PLUS® | Straight | H84B-568* | None | -5, -6, -8 | |
| Right Angle | H829-56MBPS | None | -5, -6 | ||
| NAS1919/1921 | Straight | H1900-456 | None | -4, -5, -6 | |
| CherryMAX® | Straight | H84A-8 | None | -8 | |
| Right Angle | H829-8 | None | -5, -6, -8 | ||
| CherryMAX® ‘AB’ CherryLOCK® “A” | Straight | H84-8CLA | None | -8 | |
