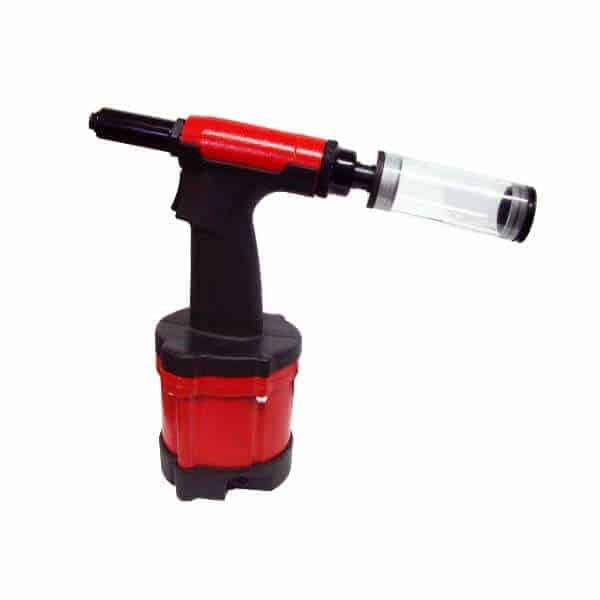

ZT1017VSN-5 3/16 inch Air Hydraulic Riveter / Vacuum type
Features
- Module unit mechanism enables more common parts to be used in similar designed tools.
- Designed with patented” Module units assembled in composite clam shell housing for operator’s comfort and ease of service.
- Ergonomic texture coated composite housing for operator’s comfort.
- Build-in exhaust muffler to minimize the tool noise efficiently.
- Rocker type trigger for ease of operational control.
- Perfect tool for automotive & general industries.
- Optional Jaw Pusher & Nose Pieces for small size rivets.
- Aluminum alloy forged and heat treated Hydraulic Section for greater strength and durability.
- Patented Vacuum Mandrel Collection System holds the rivets in the Nosepiece regardless of tool position also assure perfect shock absorption.
- The rear cap of Collection Bottle can be rotated to direct exhaust air at any direction.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke and riveting speed.
- Rocker type Trigger, ideal for long time work.
- Designed with patented “tools assembled with module units in composite housing” for operator’s comfort and ease of service.
Applications
Wherever the fastening methods like: welding, sheet metal screw, bolt, nut, washer, tubular, semitubular and solid rivets and adhesives are applied, can be substituted by blind rivets.
All models above are good for setting standard blind rivets and structural blind rivets.
Specification:
- Traction Power: 2248(1022) Ibf(kgf)
- Stroke Length: 43/64(17) inch(mm)
- Net Weight: 4.3(1.95) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air inlet Size: 1/4 Inch-NPT/PT
- Min. Hose Size: 3/8(10) Inch(mm)
- Nosepieces Equipped: 5/32(4.0)3/16(4.8) Inch(mm)

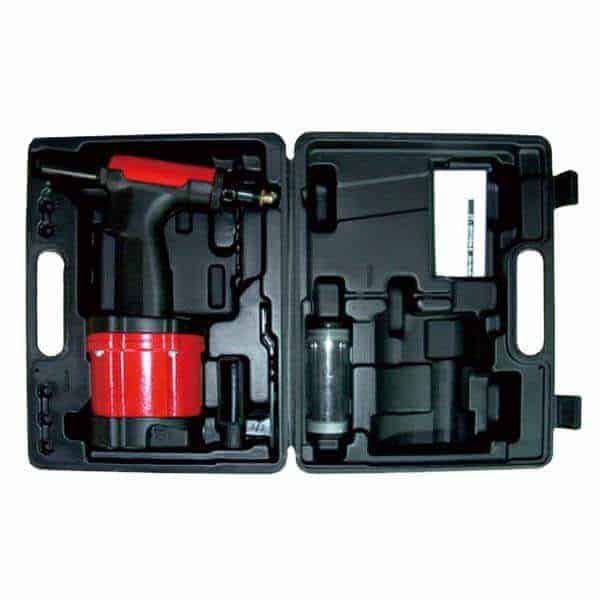

[ Accessories ]
- Riveter X 1
- Small Wrench X 1
- Large Wrench X 1
- Collection Bottle X 1
Optional
- P/N 1017VSN-1
1/4″(6.4mm) Pulling Kit - P/N 1017VSN-2
3/32″ & 1/8″(2.4mm & 3.2mm) Pulling Kit
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Operating Air Pressure psi(bar) | Air inlet Size inch-NPT/PT | Min. Hose Size inch(mm) | Nosepieces Equipped inch(mm) |
| ZT1017VSN-5 | 2248(1022) | 43/64(17) | 4.3(1.95) | 90(6.2) | 1/4 | 3/8(10) | 5/32(4.0), 3/16(4.8) |
| ZT1017VSN-6 | 2248(1022) | 43/64(17) | 4.3(1.95) | 90(6.2) | 1/4 | 3/8(10) | 1/4(6.4) |
