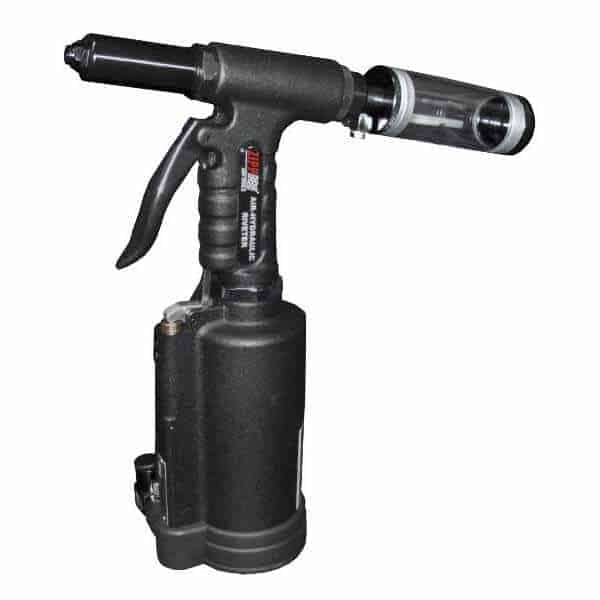

ZT0918VS 3/16 inch Air Hydraulic Riveter ( Vacuum type )
Full Aluminum Housing Series
Applications
Wherever the fastening methods like: welding, sheet metal screw, bolt, nut, washer, tubular, semitubular and solid rivets and adhesives are applied, can be substituted by blind rivets.
All models above are good for setting standard blind rivets and structural blind rivets.
Features
- Easy adjustable Head & Nut designed for obtaining the most effective stroke and riveting speed.
- Aluminum alloy forged Hydraulic Section for greater strength and durability.
- 2 piece ultra Jaw made from high grade tool steel and special heat treatment for increasing jaw life and reducing service costs.
- Mandrel Collection Bottle equipped with the patented vacuum collecting system for the cleanliness and safety of work area.
- Ergonomically designed Trigger enhances comfort and lower operator’s fatigue.
- Lock Nut designed for easy tool service.
- Side mounted Swivel Air Inlet Joint for the tool maneuverability.
- Rubber Boot designed for well protection of the tool and work surface.
Specification:
- Traction Power: 1983(900) Ibf(kgf)
- Stroke Length: 11/16(18) inch(mm)
- Net Weight: 4.07(1.85) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air inlet Size: 1/4 Inch-NPT/PT
- Min. Hose Size: 3/8(10) Inch(mm)
- Nosepieces Equipped: 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) Inch(mm)

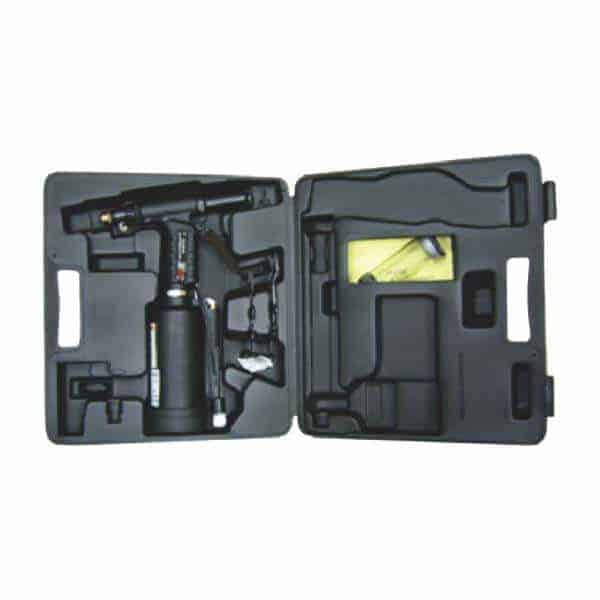

[ Accessories ]
- Riveter X 1
- Small Wrench X 1
- Large Wrench X 1
- Collection Bottle X 1
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Operating Air Pressure psi(bar) | Air inlet Size inch-NPT/PT | Min. Hose Size inch(mm) | Nosepieces Equipped inch(mm) |
| ZT0318VS | 770(350) | 11/16(18) | 2.86(1.3) | 90(6.2) | 1/4 | 3/8(10) | 3/32(2.4)1/8(3.2)5/32(4.0) |
| ZT0618VS | 1320(596) | 11/16(18) | 3.41(1.55) | 90(6.2) | 1/4 | 3/8(10) | 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) |
| ZT0918VS | 1983(900) | 11/16(18) | 4.07(1.85) | 90(6.2) | 1/4 | 3/8(10) | 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) |
| ZT1214VS-5 | 2640(1200) | 9/16(14) | 4.27(1.94) | 90(6.2) | 1/4 | 3/8(10) | 5/32(4.0)3/16(4.8) |
| ZT1214VS-6 | 2640(1200) | 9/16(14) | 4.27(1.94) | 90(6.2) | 1/4 | 3/8(10) | 3/16(4.8)1/4(6.4) |
| ZT1819VS | 3960(1800) | 3/14(19) | 5.27(2.6) | 90(6.2) | 1/4 | 3/8(10) | 3/16(4.8)1/4(6.4) |
