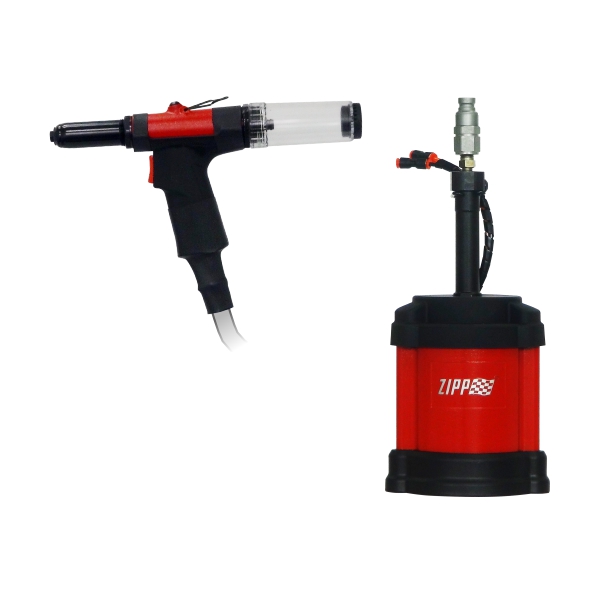

ZT0518S Split Type Blind Riveter with vacuum
The ZT0518S Split Type Blind Riveter with Vacuum is a high-performance pneumatic tool designed to efficiently and securely install blind rivets, particularly in high-volume industrial settings. This split-type riveter separates the power unit from the handheld tool, enhancing maneuverability and reducing user fatigue. The integrated vacuum system automatically collects and holds rivet mandrels, improving safety and keeping the workspace clean. Ideal for aerospace, automotive, and heavy manufacturing industries, this tool ensures precision and speed while maintaining a clean working environment.
Key Features and Benefits
- Split Type Design: The split-type configuration reduces the weight of the handheld tool, making it easier to operate in tight spaces or awkward positions. This setup increases flexibility and reduces operator fatigue during prolonged usage, ideal for large-scale industrial projects.
- Vacuum Collection System: The built-in vacuum system efficiently captures and retains spent rivet mandrels, preventing them from scattering in the workspace. This keeps the environment clean and enhances safety by reducing hazards from loose mandrels.
- Efficient Rivet Installation: The ZT0518S is designed for rapid and consistent installation of blind rivets. It allows for high-speed operation without sacrificing accuracy or strength. Its powerful pneumatic system securely delivers the force to set rivets, ensuring reliable and durable fastening.
- Durable Construction: Made from high-quality, industrial-grade materials, the ZT0518S is built to endure harsh work conditions. Its robust design ensures longevity and reliability, even in high-volume production environments.
- Ergonomic Handle: The tool’s ergonomic handle provides a comfortable grip, reducing strain on the operator’s hand and wrist. This feature is especially beneficial for extended use in large-scale manufacturing or assembly lines.
- High-Volume Production Ready: The ZT0518S is perfect for high-volume production lines. Its rapid cycling capabilities allow operators to install rivets quickly and efficiently, improving throughput without compromising quality.
- Easy Maintenance: The tool is designed for minimal maintenance, with easily accessible parts for quick repairs and servicing. This reduces downtime and ensures continuous productivity in busy work environments.
Why Choose the ZT0518S with vacuum?
The ZT0518S Split Type Blind Riveter with vacuum perfectly balances power, precision, and flexibility for blind rivet installation in industrial settings. Its split-type design allows for more excellent maneuverability, while the combination of hydraulic power ensures efficient and reliable fastening. Built for durability, ease of use, and minimal maintenance, the ZT0518S is ideal for professionals needing a versatile and dependable solution for installing blind rivets in demanding environments.
Whether you’re working in automotive assembly, aerospace manufacturing, or general metal fabrication, the ZT0518S offers the performance and reliability needed to get the job done right.
Features
- Forged & heat-treated aluminum alloy made hydraulic section for the best rigidity.
- Lightweight pistol head
- Easy to reach an inaccessible area
- Utility Pouch for Shoulder or Waist
The standard setup for 1M length
The standard setup for 3M length
Specification:
- Traction Power: 1100(500) Ibf(kgf)
- Stroke Length: 23/32(18) inch(mm)
- Handle Net Weight: 2.2(1) Ibs(kgs)
- Nosepieces Equipped: 3/32(2.4)1/8(3.2)5/32(4.0) inch(mm)
- Max. Capacity: Max. 5/32″(4.0mm) structural rivets in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
*Below specifications are measured with 1-meter length, 1/8″ I.D hydraulic hose
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Handle Net Weight lbs(kgs) | Nosepieces Equipped inch(mm) | Max. Capacity |
| ZT0518S | 1100(500) | 23/32(18) | 2.2(1) | 3/32(2.4)1/8(3.2) 5/32(4.0) | Max. 5/32″(4.0mm) structural rivets in all materials |
| ZT0920S | 2000(920) | 51/64(20) | 2.2(1) | 5/32(4.0)3/16(4.8) Monobolt 3/16(4.8) | Max. 3/16″(4.8mm) structural rivets in all materials |
| ZT1626S | 3500(1600) | 1-1/32(26) | 2.75(1.25) | 3/16(4.8)1/4(6.4) Monobolt 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) structural rivets in all materials |
| ZT2420-8S | 5200(2400) | 51/64(20) | 2.75(1.25) | 5/16(7.8) | Max. 5/16″(7.8mm) structural rivets in all materials |
| ZT2420HSN | 5200(2400) | 51/64(20) | 2.75(1.25) | Need to purchase separately, compatible with HUCK® & AVDEL® nose assemblies | 1/4″ lock bolts |
| ZT2420HS | 5200(2400) | 51/64(20) | 2.75(1.25) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
| ZT2420HSK | 5200(2400) | 51/64(20) | 2.75(1.25) | Kit includes 202HM1,202HC1,202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
HUCK® is the registered trademark of Alcoa Fastening System & Rings.
AVDEL® is the registered trademark of Stanley Engineered Fastening.
