ZSRX Hydraulic Direct Fit Wrench

SKU: ZSRX Category: Hydraulic Direct Fit Wrench Tag: Hydraulic Direct Fit Wrench

Description

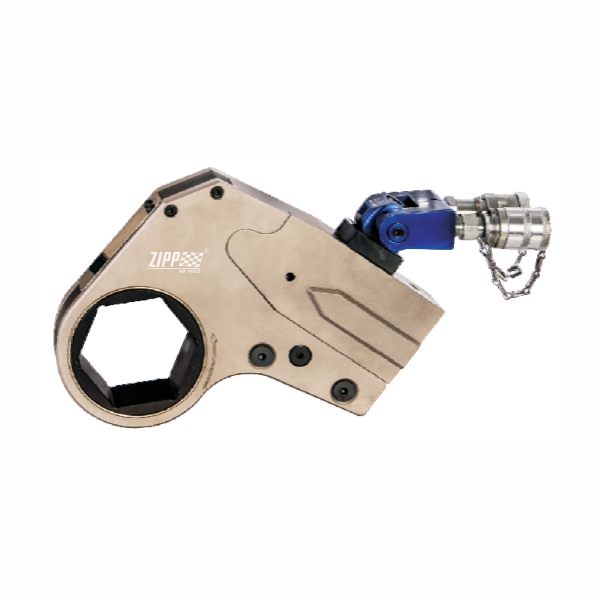

ZSRX Hydraulic Direct Fit Wrench

Double-Acting, Hexagon Cassette Wrenches
Lightweight, Low Profile & Slim Nose Radius

Tool body can be Reaction Arm, easy to work.
Bronze bushing anti galling.
“Drop Hole” will protect over pressure operating.
Output Accuracy: ±3% , Repeatability: 100%

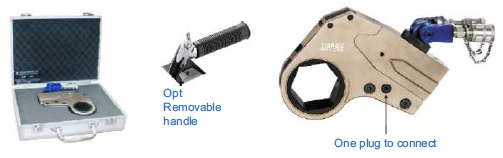

0061 1

0040 1

WARNING

0061 2

Warning wrong coupler connect or over pressure which leaking oil.

0061 3 0061 4 0061 5

0061 61

1. High Strength Body

Cylinder and Link Body are manufactured from high grade and strength alloy. Rust-resistant surface finish.

0061 62

2. Engagement Plunger

Smooth leak proof functioning of enclosed alloy steel piston and engaged hook head.

0061 63

3. Never Lock Drive Segment

Never lock drive segment does not let the wrench lock and thus eliminates the requirement of a ratchet release mechanism.

0061 64

4. Multi Tooth Ratchet Assembly

Strong strength, high accuracy and best speed.

0061 65

5. Drive Plate

Single piece high strength alloy drive plate for maximum life.
Allows small nose radius for the tool.

0061 66

6. Multi-Tooth Driving & Ratchet Assembly

Strong strength, high accuracy and best speed.

0061 67

7. Steel Link Pin

One simple pin for cassette link to cylinder engagement without using any additional or special tool.

0061 68

8. In-line Reaction Pad

This ensures torsion free reaction during use.

0061 69

9. Completely Flat Design Cylinder & Link

Equal width of cylinder and link ensures tool sits flat on flange surface.
Allows use in most confined areas.

0061 610

10. 360°*180° Swivel-Hose-Free Operation

0061 611

11. Piston Seal

High temperature Polyurethane seals ensure years of maintenance free operation.

0061 612

12. Sliders

Reduce friction and prevent wear on the piston.

Model Number	Hex. Size		Min. Torque		Max. Torque		Weight (kg)
Model Number	inch	mm	lbf.ft	N.m	lbf.ft	N.m	Cylinder	Link
ZSRX-2	1-1/4~2-3/8	30~60	192	260	2178	2994	1.99	1.48~1.85
ZSRX-4	1-5/8~3-1/8	41~80	395	535	4732	6504	3.35	3.05~3.95
ZSRX-8	1-7/8~4-1/8	50~105	830	1125	10689	14692	6.64	6.25~8.6
ZSRX-16	2-3/4~4-5/8	70~115	1560	2115	16854	23165	8.5	11.98~14.16
ZSRX-32	3-1/8~6-1/8	80~155	3220	4365	51632	51632	16.1	25.1~30.36

0062 3

Model Number	Dimensions (mm)
Model Number	A	B	C	D
ZSRX-2	32	148.8~156.8	168~175.5	9.1~11.7
ZSRX-4	41.4	172.9~189.2	204.4~220.8	12.7~13.7
ZSRX-8	52.5	210.4~235.4	268.1~283.9	13.7~19.5
ZSRX-16	64	245.7~258.3	326.7~344.7	19.5~23
ZSRX-32	82.5	287.6~313.1	422.5~442.5	23~26

0062 1 0062 2 0062 4

Bolt Dia.	Across flat	Bolt Dia. (Imp.)	Across flat (Imp.)	ZSRX-2			ZSRX-4			ZSRX-8
Bolt Dia.	Across flat	Bolt Dia. (Imp.)	Across flat (Imp.)	Link model	R (mm)	D (mm)	Link model	R (mm)	D (mm)	Link model	R (mm)	D (mm)
M	mm	inch	inch	Link model	R (mm)	D (mm)	Link model	R (mm)	D (mm)	Link model	R (mm)	D (mm)
20	30	3/4	1-1/4	ZSRX-2L30	26.6	9.1
22	32		1-7/16	ZSRX-2L32	26.6	9.1
24	36	7/8	1-5/8	ZSRX-2L36	33.5	10.4
27	41	1	1-13/16	ZSRX-2L41	34.4	10.4	ZSRX-4L41	36.8	12.7
30	46	1-1/8	2	ZSRX-2L46	37.2	10.4	ZSRX-4L46	39.5	12.7
33	50	1-1/4	2-3/16	ZSRX-2L50	40.6	11.7	ZSRX-4L50	42.3	12.7	ZSRX-8L50	43.3	13.7
36	55	1-3/8	2-3/8	ZSRX-2L55	43.7	11.7	ZSRX-4L55	45.2	12.7	ZSRX-8L55	45.9	13.7
39	60	1-1/2	2-9/16	ZSRX-2L60	46.6	11.7	ZSRX-4L60	47.9	12.7	ZSRX-8L60	48.9	13.7
42	65	1-5/8	2-3/4				ZSRX-4L65	51.7	13.7	ZSRX-8L65	5.5	13.7
45	70	1-3/4	2-15/16				ZSRX-4L70	54.8	13.7	ZSRX-8L70	54.5	13.7
48	75	1-7/8	3-1/8				ZSRX-4L75	57.3	13.7	ZSRX-8L75	57.2	13.7
52	80	2					ZSRX-4L80	60.1	13.7	ZSRX-8L80	59.9	13.7
56	85		3-1/2							ZSRX-8L85	67.2	17.5
60	90	2-1/4								ZSRX-8L90	70.1	18
64	95		3-7/8							ZSRX-8L95	73.5	18
68	100	2-1/2	4-1/4							ZSRX-8L100	76.4	18
72	105	2-3/4								ZSRX-8L105	80.5	19.5

Bolt Dia.	Across flat	Bolt Dia. (Imp.)	Across flat (Imp.)	ZSRX-16			ZSRX-32
Bolt Dia.	Across flat	Bolt Dia. (Imp.)	Across flat (Imp.)	Link model	R (mm)	D (mm)	Link model	R (mm)	D (mm)
M	mm	inch	inch	Link model	R (mm)	D (mm)	Link model	R (mm)	D (mm)
45	70	1-3/4	2-15/16	ZSRX-16L70	60.3	19.5
48	75	1-7/8	3-1/8	ZSRX-16L75	63.1	19.5
52	80	2		ZSRX-16L80	66	19.5	ZSRX-32L80	72	25
56	85		3-1/2	ZSRX-16L85	69	19.5	ZSRX-32L85	75	25
60	90	2-1/4		ZSRX-16L90	71.8	19.5	ZSRX-32L90	78	25
64	95		3-7/8	ZSRX-16L95	79.3	21	ZSRX-32L95	80.5	25
68	100	2-1/2	4-1/4	ZSRX-16L100	80	21	ZSRX-32L100	83.5	25
72	105	2-3/4		ZSRX-16L105	82	21	ZSRX-32L105	87.5	26.5
76	110		4-5/8	ZSRX-16L110	85	21	ZSRX-32L110	91.3	26.5
80	115	3		ZSRX-16L115	90	23	ZSRX-32L115	94.9	26.5
	117		5				ZSRX-32L117	94.9	26.5
85	120	3-1/4					ZSRX-32L120	96.5	26.5
	125		5-3/8				ZSRX-32L125	100.5	26.5
90	130	3-1/2					ZSRX-32L130	102.5	26.5
95	135		5-4/3				ZSRX-32L	108	28.5
	140	3-3/4					ZSRX-32L	110	28.5
100	145		6-1/8				ZSRX-32L	113	28.5
105	150	4					ZSRX-32L	116	28.5
110	155						ZSRX-32L155	119	28.5

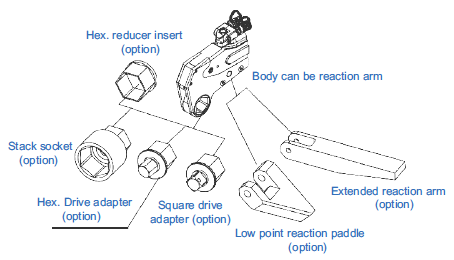

0063 11 0063 21 0063 3 0064 1 0064 2

ZSRX Series Torque Conversion Chart
Work pressure		ZSRX-2				ZSRX-4
Work pressure		1-1/4″ to 1-12/16″ 30 to 46mm		1-7/8″ to 2-3/8″ 47 to 60mm		1-5/8″ to 2-9/16″ 41 to 65mm		2-3/4″ to 3-1/8″ 70 to 80mm
psi	bar	lbf.ft	N.m	lbf.ft	N.m	lbf.ft	N.m	lbf.ft	N.m
1450	100	284	384	315	428	581	788	685	929
1740	120	340	461	379	513	697	945	822	1115
2031	140	397	538	442	599	813	1103	959	1301
2321	160	454	615	505	684	929	1260	1097	1487
2611	180	510	692	568	770	1046	1418	1234	1673
2901	200	567	769	631	855	1162	1575	1371	1858
3191	220	624	846	694	941	1278	1733	1508	2044
3481	240	680	923	757	1026	1394	1890	1645	2230
3771	260	737	999	820	1112	1510	2048	1782	2416
4061	280	794	1076	883	1198	1626	2205	1919	2602
4351	300	851	1153	946	1283	1742	2363	2056	2788
4641	320	907	1230	1009	1369	1859	2520	2193	2973
4931	340	964	1307	1073	1454	1975	2678	2330	3159
5221	360	1021	1384	1136	1540	2091	2835	2467	3345
5511	380	1077	1461	1199	1625	2207	2993	2604	3531
5802	400	1134	1538	1262	1711	2323	3150	2741	3717
6092	420	1191	1614	1325	1796	2440	3308	2878	3903
6382	440	1247	1691	1388	1882	2556	3465	3015	4088
6672	460	1304	1768	1451	1967	2672	3623	3153	4274
6962	480	1361	1845	1514	2053	2788	3780	3290	4460
7252	500	1418	1922	1577	2138	2904	3938	3427	4646
7542	520	1474	1999	1640	2224	3020	4095	3564	4832
7832	540	1531	2076	1703	2309	3137	4253	3701	5018
8122	560	1588	2153	1766	2395	3253	4410	3838	5203
8412	580	1644	2230	1830	2481	3369	4568	3975	5389
8702	600	1701	2306	1893	2566	3485	4725	4112	5575
8992	620	1758	2383	1956	2652	3601	4883	4249	5761
9282	640	1815	2460	2019	2737	3717	5040	4368	5947
9572	660	1871	2537	2082	2823	3834	5198	4523	6133
9863	680	1928	2641	2145	2908	3950	5355	4660	6319
10153	700	1985	2691	2208	2994	4066	5513	4797	6504

ZSRX Series Torque Conversion Chart
Work pressure		ZSRX-8				ZSRX-16
Work pressure		1-7/8″ to 3-1/8″ 50 to 80mm		3-3/8″ to 4-1/8″ 85 to 105mm		2-3/4″ to 3-15/16″ 70 to 100mm		4-1/8″ to 4-5/8″ 105 to 115mm
psi	bar	lbf.ft	N.m	lbf.ft	N.m	lbf.ft	N.m	lbf.ft	N.m
1450	100	1269	1720	1548	2293	2293	3109	2441	3309
1740	120	1523	2064	1858	2519	2752	3731	2929	3971
2031	140	1776	2409	2167	2938	3210	4353	3417	4633
2321	160	2030	2753	2477	3358	3669	4975	3905	5295
2611	180	2284	3097	2787	3778	4128	5596	4394	5957
2901	200	2538	3441	3096	4198	4586	6218	4882	6619
3191	220	2792	3785	3406	4618	5045	6840	5370	7281
3481	240	3045	4129	3715	5037	5504	7462	5858	7943
3771	260	3299	4473	4025	5457	5963	8084	6346	8604
4061	280	3553	4817	4335	5877	6421	8706	6835	9266
4351	300	3807	5161	4644	6297	6879	9327	7323	9928
4641	320	4060	5505	4954	6717	7338	9949	7811	10590
4931	340	4314	5849	5263	7136	7797	10571	8299	11252
5221	360	4568	6193	5573	7556	8255	11193	8787	11914
5511	380	4822	6537	5883	7976	8714	11815	9275	12576
5802	400	5075	6881	6192	8396	9173	12436	9764	13238
6092	420	5329	7226	6502	8815	9631	13058	10252	13900
6382	440	5583	7570	6812	9235	10090	13680	10740	14561
6672	460	5837	7914	7121	9655	10549	14302	11228	15223
6962	480	6091	8258	7431	10075	11007	14924	11716	15885
7252	500	6344	8602	7740	10495	11466	15546	12204	16547
7542	520	6598	8946	8050	10914	11924	16167	12693	17209
7832	540	6852	9290	8360	11334	12383	16789	13181	17871
8122	560	7106	9634	8669	11754	12842	17411	13669	18533
8412	580	7359	9978	8979	12174	13300	18033	14157	19195
8702	600	7613	10322	9288	12593	13759	18655	14645	19856
8992	620	7867	10666	9598	13013	14218	19276	15434	20518
9282	640	8121	11010	9908	13433	14676	19898	15622	21180
9572	660	8375	11354	12217	13853	15135	20520	16110	21842
9863	680	8628	11698	10527	14273	15593	21142	16598	22504
10153	700	8882	12043	10837	14692	16052	21764	17086	23166

ZSRX Series Torque Conversion Chart
Work pressure		ZSRX-32
Work pressure		3-1/8″ to 4-1/2″ 80 to 115mm		4-11/16″ to 6-1/8″ 120 to 155mm
psi	bar	lbf.ft	N.m	lbf.ft	N.m
1450	100	4734	6418	5440	7376
1740	120	5681	7702	6528	8851
2031	140	6628	8986	7616	10326
2321	160	7574	10269	8704	11801
2611	180	8521	11553	9792	13277
2901	200	9468	12837	10880	14752
3191	220	10415	14120	11968	16227
3481	240	11361	15404	13057	17702
3771	260	12308	16688	14145	19177
4061	280	13255	17971	15233	20653
4351	300	14202	19255	16321	22128
4641	320	15149	20539	17409	23603
4931	340	16095	21823	18497	25078
5221	360	17042	23106	19585	26553
5511	380	17989	24390	20673	28029
5802	400	18936	25674	21761	29504
6092	420	19883	26957	22849	30979
6382	440	20829	28241	23937	32454
6672	460	21776	29525	25025	33929
6962	480	22723	30808	26113	35404
7252	500	23670	32092	27201	36880
7542	520	24617	33376	28289	38355
7832	540	25563	34659	29377	39830
8122	560	26510	35943	30465	41305
8412	580	27457	37227	31553	42780
8702	600	28404	38510	32641	44256
8992	620	29351	39794	33729	45731
9282	640	30297	41078	34817	47206
9572	660	31244	42361	35905	48681
9863	680	32191	43645	36993	50156
10153	700	33138	44929	38081	51632
