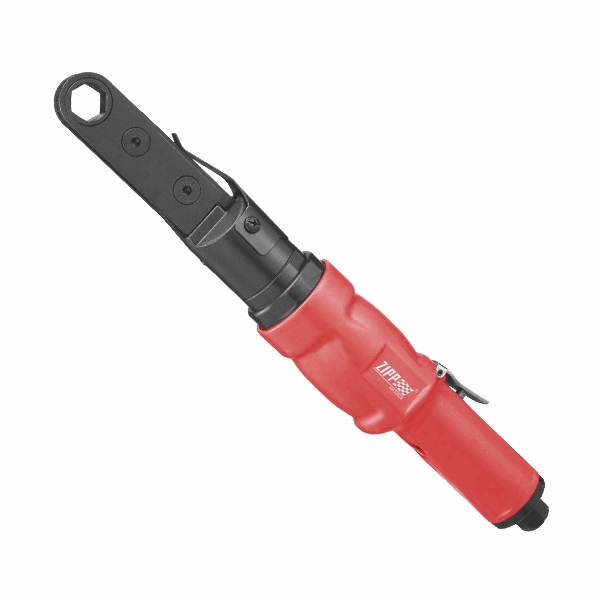

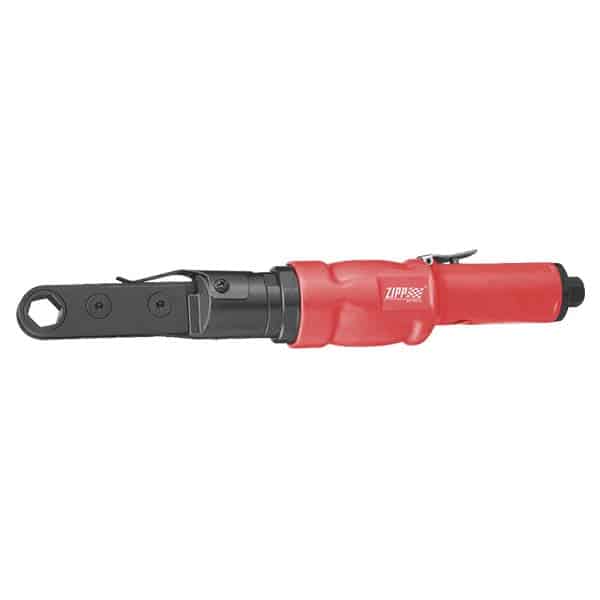

ZRW-920LS Air Ratchet Wrench / Rear Exhaust
- The ratchet wrench can be used in narrow working spaces and fasten bolts and nuts easily.
- This special tool can be reached in a tight place that other air tools can not.
- Remove: First, loosen the nut with a wrench, then remove it with an air ratchet.
- Fasten: Push the trigger to position the nut, then lock it with a torque wrench.
Specification:
- Hex Size: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 11/16″
- Working Torque: 59(80) ft-lb(Nm)
- MAX. Torque: 66(90) ft-lb(Nm)
- Free Speed: 150 rpm
- Air Consumption: 353(12.5) l/min(cfm)
- Overall Length: 15.35(390) inch(mm)
- Air Inlet: 1/4 P.T
- Net Weight: 5.33(2.42) lb(kg)
- Sound Level: 92 dB(A)

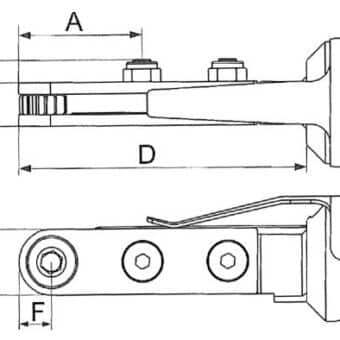

| Model | A | B | C | D | E | F |
| mm | mm | mm | mm | mm | mm | |
| ZRW-919LS | 38.2 | 20 | 13.2 | 88.2 | 20 | 10.2 |
| ZRW-925LS | 44.4 | 26 | 18 | 109 | 25.2 | 12.2 |
| ZRW-925LSB | 51 | 26 | 18 | 115 | 33.2 | 16.6 |
| ZRW-920LS | 51 | 26 | 18 | 115 | 33.2 | 16.6 |
| ZRW-938LS | 59 | 26 | 18 | 123 | 41 | 20.5 |
| Air Ratchet Wrench Order Code Reference | |||||
| Model | ZRW-919LS | ZRW-925LS | ZRW-925LSB | ZRW-920LS | ZRW-938LS |
| Hex Size | Order Code | ||||
| 6mm | ZRW-919LS-6 | ||||
| 7mm | ZRW-919LS-7 | ||||
| 8mm | ZRW-919LS-8 | ||||
| 9mm | ZRW-919LS-9 | ||||
| 10mm | ZRW-919LS-10 | ZRW-925LS-10 | ZRW-925LSB-10 | ZRW-920LS-10 | |
| 11mm | ZRW-919LS-11 | ZRW-925LS-11 | ZRW-925LSB-11 | ZRW-920LS-11 | |
| 12mm | ZRW-919LS-12 | ZRW-925LS-12 | ZRW-925LSB-12 | ZRW-920LS-12 | |
| 13mm | ZRW-925LS-13 | ZRW-925LSB-13 | ZRW-920LS-13 | ||
| 14mm | ZRW-925LS-14 | ZRW-925LSB-14 | ZRW-920LS-14 | ||
| 15mm | ZRW-925LSB-15 | ZRW-920LS-15 | |||
| 16mm | ZRW-925LSB-16 | ZRW-920LS-16 | |||
| 17mm | ZRW-925LSB-17 | ZRW-920LS-17 | |||
| 18mm | ZRW-925LSB-18 | ZRW-920LS-18 | |||
| 19mm | ZRW-925LSB-19 | ZRW-920LS-19 | |||
| 21mm | ZRW-938LS-21 | ||||
| 22mm | ZRW-938LS-22 | ||||
| 23mm | ZRW-938LS-23 | ||||
| 24mm | ZRW-938LS-24 | ||||
| 25mm | ZRW-938LS-25 | ||||
| 26mm | ZRW-938LS-26 | ||||
| 27mm | ZRW-938LS-27 | ||||
| 1/4″ | ZRW-919LS-1/4″ | ||||
| 3/8″ | ZRW-919LS-3/8″ | ||||
| 1/2″ | ZRW-925LS-1/2″ | ||||
| 9/16″ | ZRW-925LS-9/16″ | ||||
| 11/16″ | ZRW-925LSB-11/16″ | ZRW-920LS-11/16″ | |||
| Model | Hex Size mm | Working Torque ft-lb(Nm) | MAX. Torque ft-lb(Nm) | Free Speed rpm | Air Consumption l/min(cfm) | Overall Length inch(mm) | Air Inlet P.T | Net Weight lbs(kgs) | Sound Level db(A) |
| ZRW-919LS | 6, 7, 8, 10, 11, 12, 1/4″, 3/8″ | 7(10) | 7(10) | 180 | 127(4.5) | 11.81(300) | 1/4 | 2.87(1.3) | 86 |
| ZRW-925LS | 10, 11, 12, 13, 14, 1/2″, 9/16″ | 11(15) | 18(25) | 250 | 212(7.5) | 13.07(332) | 1/4 | 4.23(1.92) | 87 |
| ZRW-925LSB | 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 11/16″ | 11(15) | 18(25) | 160 | 212(7.5) | 13.3(338) | 1/4 | 4.4(2) | 87 |
| ZRW-920LS | 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 11/16″ | 59(80) | 66(90) | 150 | 353(12.5) | 15.35(390) | 1/4 | 5.33(2.42) | 92 |
| ZRW-938LS | 21, 22, 23, 24, 26, 27 | 59(80) | 66(90) | 130 | 353(12.5) | 15.66(398) | 1/4 | 5.46(2.48) | 92 |
Recommended Gauge Air Pressure: 60~90psi
