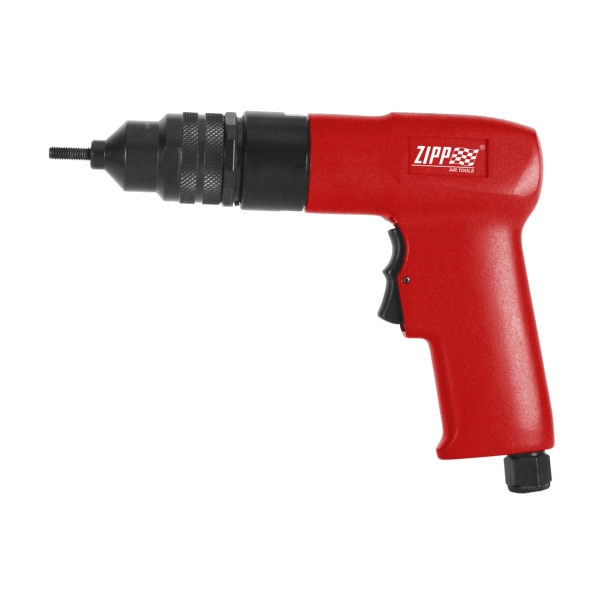

ZRN500B Aluminum Housing Air Rivet Nut Tool
The ZRN500B Aluminum Housing Air Rivet Nut Tool is a robust, lightweight, and highly efficient pneumatic tool designed to rapidly install rivet nuts in industrial, automotive, and construction applications. Its aluminum housing ensures durability while maintaining a lighter weight for improved operator comfort during extended work sessions. This tool is specifically designed for professionals who require reliable, high-speed performance for riveting tasks in demanding environments.
Key Features and Benefits
- Durable Aluminum Housing: The ZRN500B is encased in high-strength aluminum housing, offering excellent durability while keeping the tool lightweight. This provides impact resistance and long-term reliability, making it ideal for continuous use in harsh working conditions.
- Lightweight Design: The tool’s lightweight aluminum construction reduces operator fatigue during extended periods of use, allowing for more efficient handling and improved productivity. This feature is especially beneficial in high-volume production or large-scale projects that require extended tool use.
- Pneumatic Power: Powered by a compressed air system, the ZRN500B provides consistent force for installing rivet nuts securely in a variety of materials such as steel, aluminum, and plastic. The pneumatic drive delivers high torque, ensuring that rivet nuts are installed accurately and quickly without manual effort.
- Ergonomic Grip and Trigger: Designed with ergonomics in mind, the tool features a comfortable grip and an easy-to-operate trigger that enhances control and reduces strain during prolonged use. The balanced design ensures smoother operation, allowing for precise rivet nut placement every time.
- High-Speed Rivet Nut Installation: The ZRN500B is engineered for rapid rivet nut installation, reducing the time required for fastening tasks. This speed makes it perfect for high-volume production environments where efficiency is crucial to maintaining a steady workflow.
- Versatile Rivet Nut Compatibility: This tool is compatible with various rivet nut sizes and materials, making it adaptable for various applications. Whether you are working with small or large rivet nuts, the ZRN500B can easily handle the task, providing a secure and tight fit.
- Minimal Maintenance: The ZRN500B is designed for durability and long-term use with minimal maintenance. Its reliable internal components and aluminum housing ensure the tool can withstand rigorous use in industrial settings without frequent servicing.
Applications
The ZRN500B Aluminum Housing Air Rivet Nut Tool is suitable for a variety of applications across multiple industries:
- Automotive Industry: Ideal for use in automotive assembly and repair, where precision and speed are essential. With rivet nuts, the tool can secure panels, chassis components, and other structural elements.
- Manufacturing and Assembly Lines: This tool is perfect for high-volume production environments where rapid fastening is necessary. Its lightweight design and high-speed operation make it invaluable for industrial manufacturing and assembly lines.
- Aerospace: Useful in aerospace applications for installing rivet nuts on aircraft components, where precision and reliability are essential. The tool’s lightweight and durable design ensures it can handle the demands of aerospace manufacturing and maintenance.
- Construction and Metal Fabrication: The ZRN500B is suitable for construction projects, metal fabrication, and structural assembly. It is effective for fastening metal sheets, enclosures, and other construction-related materials using rivet nuts.
- General Maintenance and Repair: This tool is ideal for maintenance teams that need a reliable tool for installing rivet nuts on machinery, vehicles, or other equipment. Its lightweight and compact design allows use in tight spaces, making it versatile for various repair tasks.
Why Choose the ZRN500B Aluminum Housing Air Rivet Nut Tool?
The ZRN500B Aluminum Housing Air Rivet Nut Tool offers the perfect balance of durability, speed, and ease of use. Its lightweight aluminum construction ensures long-lasting performance while reducing operator fatigue, making it an ideal choice for high-demand environments. Whether you’re working in automotive, aerospace, building, or general manufacturing, this tool provides the power and precision needed for reliable and fast rivet nut installation.
With its ergonomic design, pneumatic power, and versatile rivet nut compatibility, the ZRN500B ensures that your fastening tasks are completed efficiently and with minimal effort. It’s the perfect tool for professionals who demand high performance and durability in their daily operations.
Features
- Powerful Precise Motor.
- Exclusive Quick Reversible Trigger.
- Handle Exhaust
- Lightweight
- Smooth, Direct Driver.
B type Nose Head
Quick Change type Nose Head
Specification:
- Rivet Nut Setting Capacity: M4, M5, M6
- Free Speed rpm: 500
- Net Weight: 2.87(1.3) Ibs(kgs)
- Avg. Air Cons.: 5(141) cu.ft/stroke
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Sound Pressure: 86 dBA
- Vibration m/s2: <2.5
| Metric System | ||
| Optional Nose Assembly | ||
| Size | B-Type (Screw-On) | Q-Type (Quick Change) |
| M3 | P/N: 103800B | P/N: 103800Q |
| M4 | P/N: 104800B | P/N: 104800Q |
| M5 | P/N: 105800B | P/N: 105800Q |
| M6 | P/N: 106800B | P/N: 106800Q |
| M8 | P/N: 208800B | P/N: 208800Q |
| M10 | P/N: 210800B | P/N: 210800Q |
| #6-32 | P/N: 632800B | P/N: 632800Q |
| #8-32 | P/N: 832800B | P/N: 832800Q |
| #10-24 | P/N: 124800B | P/N: 124800Q |
| #10-32 | P/N: 132800B | P/N: 132800Q |
| 1/4″-20 | P/N: 114800B | P/N: 114800Q |
| 5/16″-18 | P/N: 516800B | P/N: 516800Q |
| 3/8″-16 | P/N: 238800B | P/N: 238800Q |
* Each tool comes with ONLY one size of rivet nut head; please specify the model you require when ordering.
| Model | Max. Rivet Nut Setting Capacity Round Rivet Nut(mm) | Free Speed rpm | Net Weight lbs(kgs) | Avg. Air Cons. cu. ft/stroke | Air Inlet Size inch-NPT/PT | Min. Hose Size inch(mm) | Sound Pressure dB(A) | Vibration m/s² |
| ZRN280B | M10 Round / Alum. | 280 | 2.87(1.3) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN280Q | M10 Round / Alum. | 280 | 2.87(1.3) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN500B | M6 Hex. / All Materials | 500 | 2.87(1.3) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN500Q | M6 Hex. / All Materials | 500 | 2.87(1.3) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN500B | M5 Round / Alum. | 720 | 2.87(1.3) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN700Q | M5 Round / Alum. | 720 | 2.87(1.3) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN1600B | M4 Round / Steel | 1700 | 2.2(1) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN1600Q | M4 Round / Steel | 1700 | 2.2(1) | 5(141) | 1/4 | 3/8(10) | 86 | <2.5 |
