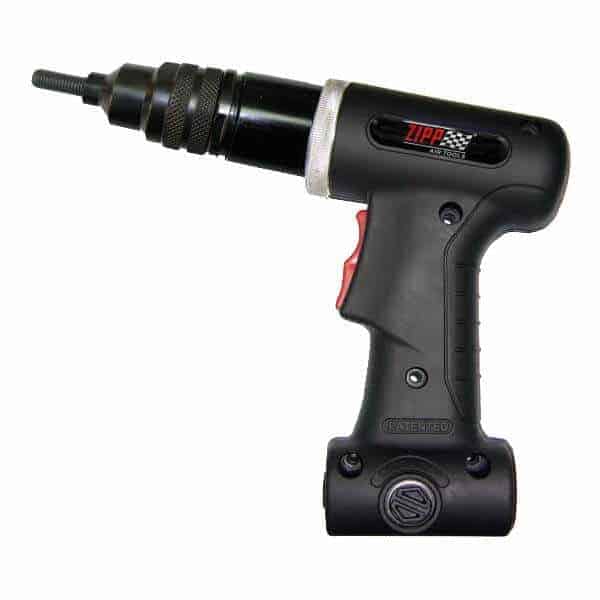

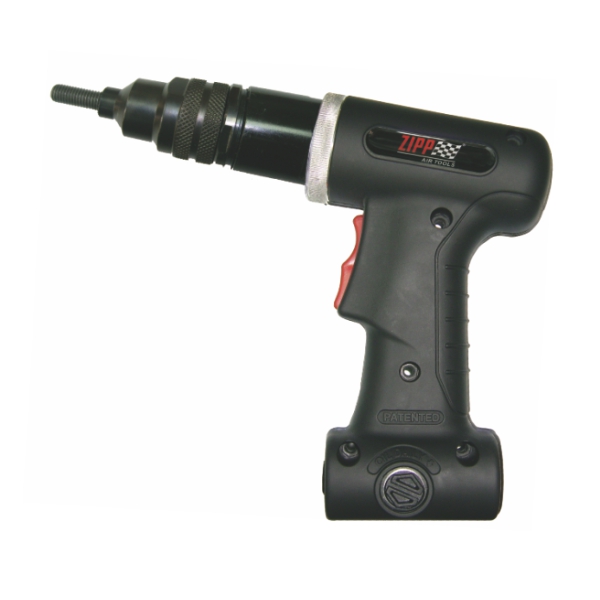

ZRN212 Composite Air Rivet Nut Tool – M12
The ZRN212 Composite Air Rivet Nut Tool — M12 is a professional-grade pneumatic tool designed for rapid and efficient rivet nut installation. Its lightweight composite body makes it ideal for industrial applications, manufacturing, and repair tasks that require reliable, high-speed rivet nut fastening.
Key Features and Benefits
- Rivet Nut Setter Head (M12): The ZRN212 features a quick-change head system, allowing seamless and fast swapping between rivet nut sizes or styles. This M12 version is specifically designed for M12 rivet nuts, providing precision and efficiency during installation. The tool’s head design minimizes downtime, making it ideal for tasks requiring frequent head changes.
- Lightweight Composite Body: Constructed with durable composite material, the tool is lightweight yet strong, reducing operator fatigue during extended use. This makes it suitable for high-volume production environments where the tool is constantly operated. The lightweight design also ensures better maneuverability and ease of use in confined spaces.
- Pneumatic Power: Powered by compressed air, the ZRN212 offers consistent and reliable performance for installing rivet nuts in various materials, including steel, aluminum, and plastic. The pneumatic system delivers the necessary torque and power to ensure secure and proper installation every time.
- High-Speed Operation: This tool is designed for rapid rivet nut installation, making it ideal for high-throughput environments. Its high-speed capability ensures efficient fastening, reducing time spent on each installation and increasing overall productivity.
- Ergonomic Handle Design: The ergonomic handle is designed for operator comfort, reducing strain on the hands and wrists during prolonged use. Its comfortable grip allows for better control, making precision installations easier.
- Adjustable Torque and Stroke: The ZRN212 offers adjustable torque and stroke settings, giving users complete control over the force and depth of each rivet nut installation. This flexibility is essential for adapting to different materials and ensuring optimal installation without damaging the workpiece.
- Low Maintenance and Durability: The tool’s composite body and high-quality internal components are designed for long-term durability. Its low-maintenance design ensures that it can withstand continuous use in demanding industrial environments, while the robust construction helps reduce downtime caused by wear and tear.
Applications
The ZRN212 Composite Air Rivet Nut Tool is well-suited for a variety of applications across several industries:
- Automotive Industry: Ideal for installing rivet nuts in automotive assemblies, such as securing panels, frames, and structural components. The tool’s quick-change head system allows fast switching between different rivet nut sizes, making it highly versatile for automotive manufacturing and repair.
- Manufacturing and Assembly Lines: This tool is perfect for high-speed production lines where efficiency is crucial. Its quick-change head feature and pneumatic power make it an essential tool for fastening tasks in industrial manufacturing.
- Aerospace: Used in aircraft manufacturing and maintenance, the ZRN212 ensures reliable rivet nut installation on metal and composite materials. Its precision and speed make it a valuable tool for aerospace applications requiring secure and lightweight fastening.
- Construction and Metal Fabrication: This tool suits metalworking, construction, and sheet metal applications. It offers fast and secure rivet nut installation, particularly in structural assemblies, cladding, and enclosures.
- General Maintenance and Repair: The ZRN212 is ideal for maintenance tasks that require rivet nut installation, including repairing equipment, machinery, and vehicles. Its compact design and ergonomic handle allow for use in tight spaces, providing versatility in repair work.
Why Choose the ZRN212 Composite Air Rivet Nut Tool – M12?
The ZRN212 stands out for its quick-change head system, ergonomic design, and powerful pneumatic performance, making it an excellent choice for professionals who need a reliable and efficient tool for installing rivet nuts. Whether you are working in automotive repair, industrial manufacturing, or metal fabrication, the ZRN212 delivers the precision, speed, and versatility needed to complete your tasks efficiently.
Its lightweight construction, high-speed operation, and quick head changes make it a must-have tool for any setting requiring rapid, high-volume rivet nut installation with minimal downtime.
Clam Shell Composite Housing
Features
- They are designed with patented “Module units assembled in composite clam shell housing” for easy tool service.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Less friction loss along the air passage to increase tool power & performance.
- Module unit mechanism enables more common parts to be used in similar designed tools.
- Rocker-type trigger and both left or right-hand side air inlets for ease of operational control.
- Composite Clam Shell Housing
- Operating Module
- Air Actuating Module with Rocker Type Trigger
- Air Inlet Hose
- Air Bleeding Hose
- Air Inlet Module
Specification:
- Max. Rivet Nut Setting Capacity: M12 Hex./Steel
- Free Speed: 280 rpm
- Net Weight:3.08(1.4) Ibs(kgs)
- Avg. Air Cons.: 9.9(280) cu.ft/stroke
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Sound Pressure: 86 dBA
- Vibration : <2.5 m/s2
| Optional Nose Assembly | |||
| Size | B-Type (Screw-On) | Q-Type (Quick Change) | Model for other sizes: |
| M12 | P/N: 210800B | P/N: 210800Q | ZRN212 or ZRN212Q |
| M12 | P/N: 212800B | ZRN212 | |
| 1/2″-13 | P/N: 12C800B | ZRN213 | |
| 3/8″-16 | P/N: 238800B | P/N: 238800Q | ZRN216 or ZRN216Q |
| 3/8″-24 | P/N: 38F800B | ZRN224 | |
* Each tool comes with ONLY one size of rivet head; please specify the model you require when ordering.
| Model | Max. Rivet Nut Setting Capacity Round Rivet Nut(mm) | Free Speed rpm | Net Weight lbs(kgs) | Avg. Air Cons. cfm(l/min) | Air Inlet Size inch-NPT/PT | Min. Hose Size inch(mm) | Sound Pressure dB(A) | Vibration m/s² |
| ZRN106 | M6 Round/Steel | 1500 | 3.06(1.39) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN106Q | M6 Round/Steel | 1500 | 2.42(1.10) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN508 | M8 Hex./All Materials | 500 | 3.08(1.4) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN508Q | M8 Hex./All Materials | 500 | 2.50(1.13) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN212 | M12 Hex./All Materials | 280 | 3.08(1.4) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN212 | M12 Hex./Steel | 280 | 3.08(1.4) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
