ZRH-133NP 3X Shock Reduced Air Riveting Hammer-Low Vibration
Features
- Designed with following patents for assuring the best shock reduction and operator’s comfort.
1) Portable pneumatic tool assembled with module units.
2) Suspension vibration-reducing means for portable pneumatic tools. - Alloy steel made impact parts, heat-treated for durability.
- Spool valve allows slow heavy blows needed to drive rivets.
- Ergonomic handle with rubber made exhaust muffler for added operator’s comfort.
- Optional patented universal swivel air inlet joint for the best maneuverability of the tool.
- Air inlet tube
- Bumper
- Valve seat
- Air actuating valve
- Auxiliary damping spring
- Ergonomic handle with rubber sleeve
Features
- Patented Shock Reduced Mechanism.
- Low vibration design to prevent operator’s injury after long time use.
- Ergonomic handle with rubber made exhaust muffler for added operator’s comfort.
- Optional patented Universal Swivel Air Inlet Joint for the best maneuverability of the tool.
Use for aero space & general automotive industries, etc.
ZRH-133NPK

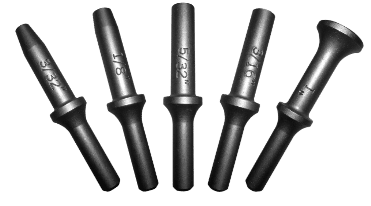

[ KIT Contents ]
- CA132901 X1
- CA132902 X1
- CA132903 X1
- CA132904 X1
- CA132905 X1
- 192902 Retainer Spring X1
Specification:
- Chisel Shank Opening: 0.401(10.2) inch(mm)
- Bore Diameter: 9/16(14.3) inch(mm)
- Stroke Length: 2-7/8(73) inch(mm)
- Blows Per Minute: 2164 bpm
- Operating Air Pressure: 90(6.2) PSI(bar)
- Avg. Air Cons.: 7.42(210) cfm(l/min)
- Net Weight: 2.9(1.3) lbs(kgs)
- Vibration: 6 m/s2
- Rivet Size: 5/32 Steel
- Rivet Size: 3/16 inch(mm)
For ZRH-132P, ZRH-132PAP, ZRH-132S, ZRH-133P, ZRH-133PAP, ZRH-133S, ZRH-134P, ZRH-134PAP, ZRH-134S, ZRH-132N, ZRH-133N, ZRH-134N
- Round 10.18mm
- Material SCM440 Alloy
- Hardness: 48~51º
192902
Optional
192903
132914
192903
| Model | Chisel Shank Opening inch(mm) | Bore Diameter inch(mm) | Stroke Length inch(mm) | Blows Per Minute bpm | Operating Air Pressure psi(bar) | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Vibration m/s² | Rivet Size | |
| Steel | Alum | |||||||||
| ZRH-132N | 0.401(10.2) | 1/2(12.7) | 2-1/4(57.2) | 2580 | 90(6.2) | 6.71(190) | 2.9(1.3) | 6 | 3/32 | 1/8 |
| ZRH-132NP | 0.401(10.2) | 9/16(14.3) | 2-1/4(57.2) | 2580 | 90(6.2) | 6.71(190) | 2.9(1.3) | 6 | 3/32 | 1/8 |
| ZRH-133N | 0.401(10.2) | 1/2(12.7) | 2-7/8(73) | 2164 | 90(6.2) | 7.42(210) | 2.9(1.3) | 6 | 5/32 | 3/16 |
| ZRH-133NP | 0.401(10.2) | 9/16(14.3) | 2-7/8(73) | 2164 | 90(6.2) | 7.42(210) | 2.9(1.3) | 6 | 5/32 | 3/16 |
| ZRH-134N | 0.401(10.2) | 1/2(12.7) | 3-1/16(77.8) | 1740 | 90(6.2) | 7.42(210) | 3.7(1.7) | 6 | 3/16 | 1/4 |
| ZRH-134NP | 0.401(10.2) | 9/16(14.3) | 3-1/16(77.8) | 1740 | 90(6.2) | 7.42(210) | 3.7(1.7) | 6 | 3/16 | 1/4 |
