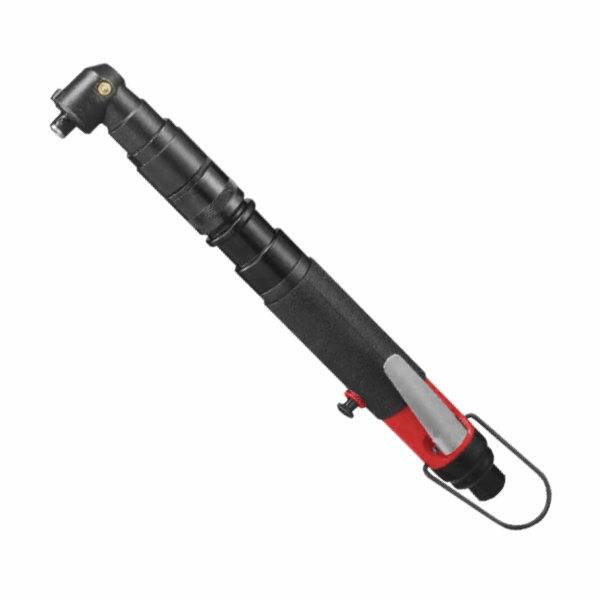

ZRAW-6SLA03 Air Screwdriver / Air shut off, Torque Control Type, Rear Exhaust
Specification:
- Screw Size Capacity: 6 mm
- MAX. Torque: 3~7.4(4~10) ft-lb(Nm)
- Free Speed: 340 rpm
- Air Consumption: 198(7) l/min(cfm)
- Overall Length: 13.77(350) inch(mm)
- Air Inlet: 1/4 P.T
- Net Weight: 2.86(1.3) lb(kg)
- Sound Level: 80 dB(A)
| Model | Screw Size Capacity mm | MAX. Torque ft-lb(Nm) | Free Speed rpm | Air Consumption l/min(cfm) | Overall Length inch(mm) | Air Inlet P.T | Net Weight lbs(kgs) | Sound Level db(A) |
| ZRAW-6SLA15 | 4 | 0.9~1.8(1.2~2.4) | 1450 | 198(7) | 13.39(340) | 1/4 | 2.69(1.22) | 80 |
| ZRAW-6SLA08 | 5 | 1.6~3.2(2.2~4.3) | 800 | 198(7) | 13.39(340) | 1/4 | 2.69(1.22) | 80 |
| ZRAW-6SLA03 | 6 | 3~7.4(4~10) | 340 | 198(7) | 13.77(350) | 1/4 | 2.86(1.3) | 80 |
