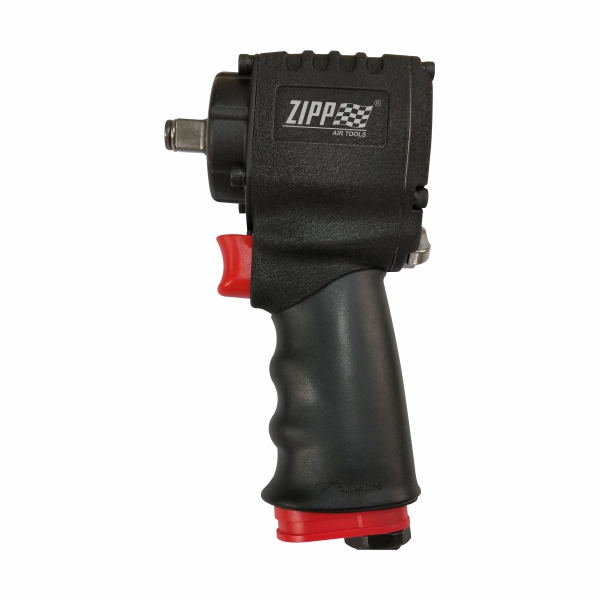

ZIW417J 1/2 inch Super Duty Mini Air Impact Wrench / Rotary Exhaust, Jumbo Hammer Design
Specification:
- Square Drive: 1/2(12.7) inch(mm)
- Std. Bolt Size: 5/8(16) inch(mm)
- Free Speed: 9500 rpm
- Max. Torque(10 secs): 700(949) ft-lb(Nm)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Avg. Air Cons.: 7.42(210) cfm(l/min)
- Net Weight: 3.19(1.45) lbs(kgs)
- Min. Hose Size: 3/8(10) inch(mm)
- Air Inlet Size:1/4 inch-NPT/PT
| Model | Square Drive inch(mm) | Std. Bolt Size inch(mm) | Free Speed rpm | Max. Torque (10 secs) ft-lb(Nm) | Operating Air Pressure psi(bar) | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Min. Hose Size inch(mm) | Air Inlet Size inch-NPT/PT |
| ZIW340JLU | 3/8(10) | 5/8(16) | 9000 | 450(610) | 90(6.2) | 4.2(119) | 2.78(1.26) | 3/8(10) | 1/4 |
| ZIW440JLU | 1/2(12.7) | 5/8(16) | 9000 | 450(610) | 90(6.2) | 4.2(119) | 2.78(1.26) | 3/8(10) | 1/4 |
| ZIW440JL | 1/2(12.7) | 5/8(16) | 9000 | 450(610) | 90(6.2) | 4.12(117) | 2.78(1.26) | 3/8(10) | 1/4 |
| ZIW417JA | 1/2(12.7) | 5/8(16) | 10000 | 700(949) | 90(6.2) | 7.42(210) | 3(1.37) | 3/8(10) | 1/4 |
| ZIW417JAQ | 1/2(12.7) | 5/8(16) | 8500 | 700(949) | 90(6.2) | 7.42(210) | 3(1.37) | 3/8(10) | 1/4 |
| ZIW417J | 1/2(12.7) | 5/8(16) | 9500 | 700(949) | 90(6.2) | 7.42(210) | 3.19(1.45) | 3/8(10) | 1/4 |
| ZIW417JQ | 1/2(12.7) | 5/8(16) | 8000 | 700(949) | 90(6.2) | 7.42(210) | 3.19(1.45) | 3/8(10) | 1/4 |
| ZIW418T | 1/2(12.7) | 5/8(16) | 10000 | 750(1017) | 90(6.2) | 7.42(210) | 3.3(1.5) | 3/8(10) | 1/4 |
| ZIW418TQ | 1/2(12.7) | 5/8(16) | 9500 | 750(1017) | 90(6.2) | 7.42(210) | 3.3(1.5) | 3/8(10) | 1/4 |
