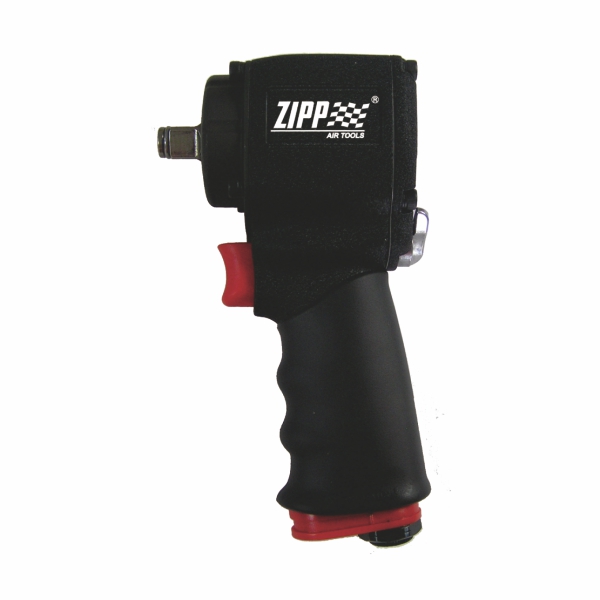

ZIW3207J 3/8 inch Micro Mini Air Impact Wrench / Rear Exhaust, Jumbo Hammer Design
Features
- Adjustable 3 stages speed for Forward/Reverse
- Most power and compact, deliver best Power-to-Size ratio in this class
- Use for heavy automotive and truck repair, construction or assembly line.
- With new twin hammer design and hot forged alloy steel made Hammer cage & Anvil to create more torque and 3 times longer life span than traditional design.
Specification:
- Square Drive: 3/8(10) inch(mm)
- Std. Bolt Size: 5/8(16) inch(mm)
- Free Speed: 11000 rpm
- Max. Torque(10 secs): 450(610) ft-lb(Nm)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Avg. Air Cons.: 7(200) cfm(l/min)
- Net Weight: 3(1.37) lbs(kgs)
- Min. Hose Size: 3/8(10) inch(mm)
- Air Inlet Size:1/4 inch-NPT/PT
ZIW3207JK-M 3/8″ mini impact kit / w/ 8 pcs metric sockets
ZIW3207JK-E 3/8″ mini impact kit / w/ 8 pcs imperial sockets
- Mini air impact X 1
- Oiler X 1
- 3″ Extension bar X 1
- 8 pcs Metric or SAE Cr-Mo sockets 10, 13, 14, 16, 17, 19, 21, 22mm or 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″
| Model | Square Drive inch(mm) | Std. Bolt Size inch(mm) | Free Speed rpm | Max. Torque (10 secs) ft-lb(Nm) | Operating Air Pressure psi(bar) | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Min. Hose Size inch(mm) | Air Inlet Size inch-NPT/PT |
| ZIW4206T | 1/2(12.7) | 5/8(16) | 11000 | 450(610) | 90(6.2) | 7(200) | 3(1.37) | 3/8(10) | 1/4 |
| ZIW3206T | 3/8(10) | 5/8(16) | 11000 | 400(542) | 90(6.2) | 7(200) | 3(1.37) | 3/8(10) | 1/4 |
| ZIW4207J | 1/2(12.7) | 5/8(16) | 11000 | 500(678) | 90(6.2) | 7(200) | 3(1.37) | 3/8(10) | 1/4 |
| ZIW3207J | 3/8(10) | 5/8(16) | 11000 | 450(610) | 90(6.2) | 7(200) | 3(1.37) | 3/8(10) | 1/4 |
