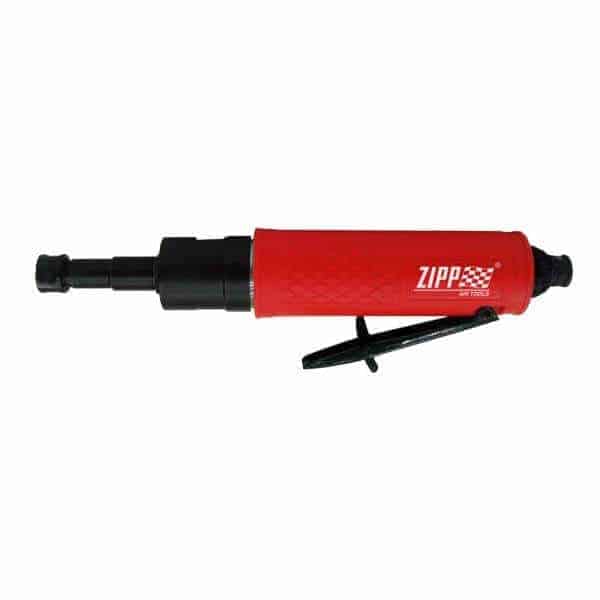

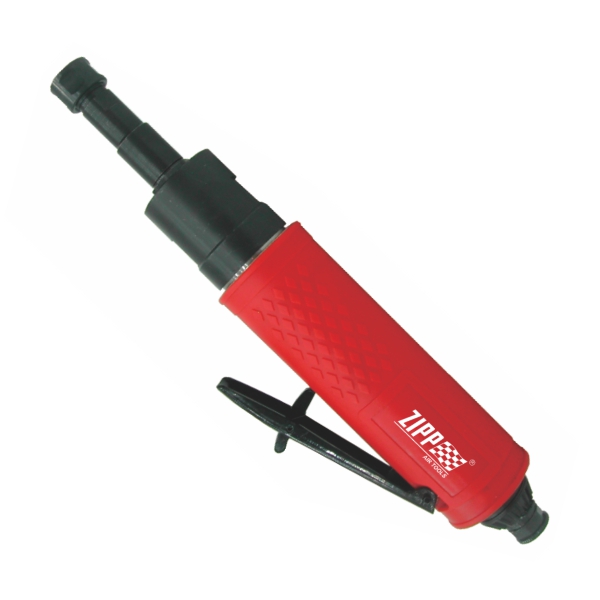

ZDG-S206 Industrial 1/4 inch Air Die Grinder
- Can be used as sander for expandable / flap wheels, brushes.
 | P/N: 24182-10 3/8″-24 24182-13 1/2″-20 Optional combo arbor ( interchange with # 24182 arbor set ) with 1/2″-20 or 3/8″-24 female thread for up to 3″ wide wheels with 5/8″ or 1″ diameter center hole for use on model# ZDG-S220, ZDG-S206 & ZDG-S235 grinders. |
Specification:
- Size of Collet: 1/4(6) inch(mm)
- Free Speed: 600 rpm
- Operating Air Pressure: 90(6.2) PSI(bar)
- Avg. Air Consumption: 5(141) cfm(l/min)
- Net Weight: 2.6(1.2) lbs(kgs)
- Overall Length: 10(250) inch(mm)
- Min. Hose Size: 3/8(10) inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT
| Model | Size of Collet inch(mm) | Free Speed rpm | Operating Air Pressure psi(bar) | Avg. Air Consumption cfm(l/min) | Net Weight lbs(kgs) | Overall Length inch(mm) | Minch Hose Size inch(mm) | Air Inlet Size inch-NPT/PT |
| ZDG-S220 | 1/4(6) | 2200 | 90(6.2) | 5(141) | 2(0.92) | 8-5/8(220) | 3/8(10) | 1/4 |
| ZDG-S216 | 1/4(6) | 15000 | 90(6.2) | 5(141) | 1.8(0.8) | 8(200) | 3/8(10) | 1/4 |
| ZDG-S206 | 1/4(6) | 600 | 90(6.2) | 5(141) | 2.6(1.2) | 10(250) | 3/8(10) | 1/4 |
| ZDG-S235 | 1/4(6) | 3500 | 90(6.2) | 5(141) | 2(0.92) | 8-5/8(220) | 3/8(10) | 1/4 |
