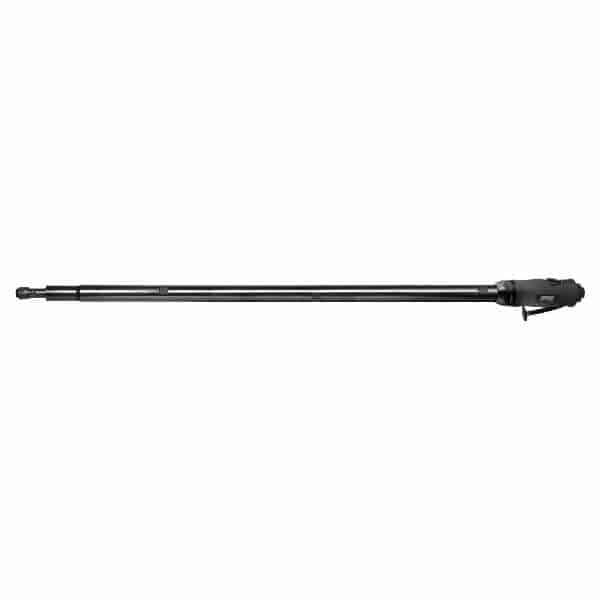

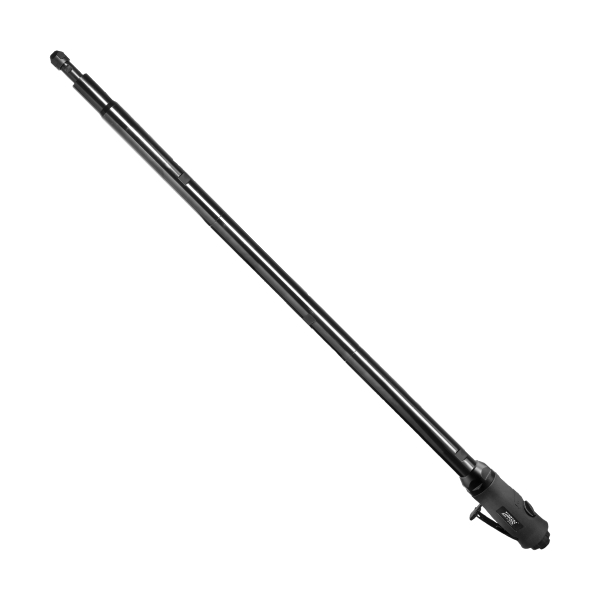

ZDG-3076L800 31-1/2 inch Air Extension Die Grinder
Benefits
- Industrial extended shaft long die grinder design for high speed grinding& polishing in hard-to-reach areas
- By using 1/4″( 6mm) or 3/8″(8mm) Double Angle Collets, the die grinder can be used in a wide range of grinding and polishing applications with various wheels
- 4000rpm models are excellent for grinding applications with flap sanding wheel
- High productivity
- Highest durability in demanding applications
Features
- 12″ (305 mm), 21-3/8″ (543 mm), 31-1/2″ (800 mm) extended body by Aluminum alloy structure.
- Comfort grip over-housing
- Streamlined safety lever
- Rear exhaust
- 1/4″ (6mm) & 3/8″ (8mm) industrial grade Double Angle collet holder
- 1.0 hp motor
- 22,000 rpm free speed models and 3,500 rpm free speed models
 | |
| ZST-200E-29 6mm COLLET ZST-200E-29-1 1/4″ COLLET | ZST-200E-29-2 8mm COLLET ZST-200E-29-4 3/8″ COLLET |
Specification:
- 1HP Die Grinders
- Collet size: 1/4(6) inch(mm)
- Net Weight: 5.5(2.5) Ibs(kg)
- Length: 38.3(974) inch(mm)
- rpm: 3500
- Air Inlet: 1/4 inch
- Min.Hose Size: 3/8(10) inch(mm)
- Avg. Air Cons.: 4.2 cfm
* The length of extended body can be customize to extended as requirement.
| Model | Collet size inch(mm) | Net Weight lbs(kgs) | Length inch(mm) | rpm | Air Inlet inch | MinchHose Size inch(mm) | Avg. Air Cons. cfm |
| ZDG-301L300 | 1/4(6) | 2.9(1.3) | 17.5(445) | 22000 | 1/4 | 3/8(10) | 4.2 |
| ZDG-301L500 | 1/4(6) | 3.9(1.8) | 27(688) | 22000 | 1/4 | 3/8(10) | 4.2 |
| ZDG-301L800 | 1/4(6) | 4.9(2.2) | 37.1(943) | 22000 | 1/4 | 3/8(10) | 4.2 |
| ZDG-3076L300 | 1/4(6) | 3.5(1.6) | 18.7(477) | 3500 | 1/4 | 3/8(10) | 4.2 |
| ZDG-3076L500 | 1/4(6) | 4.5(2) | 28.3(719) | 3500 | 1/4 | 3/8(10) | 4.2 |
| ZDG-3076L800 | 1/4(6) | 5.5(2.5) | 38.3(974) | 3500 | 1/4 | 3/8(10) | 4.2 |
