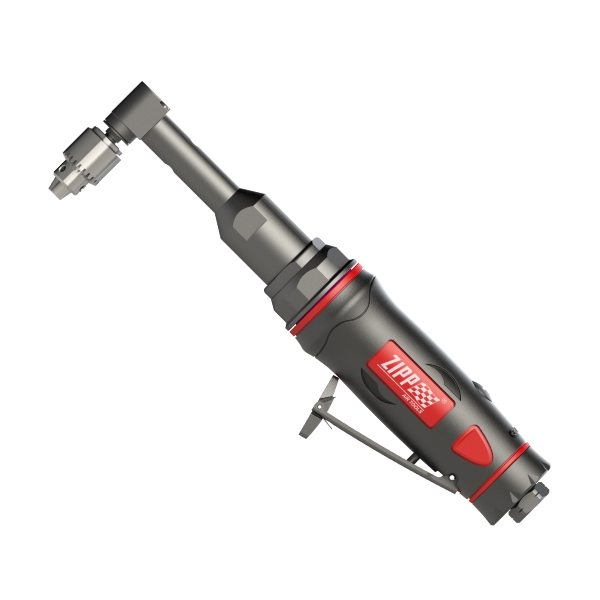

ZD2335 90˚ Industrial Angle Drill – Chuck type
The ZD2335 90° Industrial Angle Drill is a robust and versatile tool designed for precision drilling in confined or hard-to-reach areas. Its 90° angled head and chuck-type mechanism offer unmatched flexibility and efficiency, catering to various industrial applications. Built for durability and performance, this drill is an excellent choice for automotive, aerospace, and heavy manufacturing professionals.
Key Features
- 90° Angled Head
- It is ideal for drilling in tight spaces and awkward angles.
- Provides precision and control in applications requiring a compact design.
- Chuck-Type Mechanism
- It has a standard chuck that accommodates various drill bit sizes and types.
- Quick and easy bit changes improve work efficiency.
- Industrial-Grade Durability
- Constructed with high-quality materials for long-lasting use.
- Withstands intensive and continuous operation in demanding environments.
- Ergonomic and Lightweight Design
- Designed for user comfort and reduced fatigue during extended use.
- Compact and lightweight for better maneuverability.
- Smooth and Quiet Operation
- Low vibration and noise levels enhance operator comfort.
- Provides a steady drilling experience for precision tasks.
- Reliable Power Output
- Delivers consistent torque for drilling through rigid materials like metals, composites, and plastics.
- It is ideal for repetitive tasks requiring high accuracy.
Applications
- Automotive Repairs
- Used for precision drilling in engine compartments and other confined spaces.
- Perfect for removing or installing fasteners in challenging positions.
- Aerospace Engineering
- Essential for drilling and fastening in tight structural assemblies.
- Handles lightweight but durable materials with precision.
- Industrial Assembly
- It is ideal for production line tasks that require reliable performance.
- Effective on metal, wood, and other commonly used industrial materials.
- Maintenance and Repairs
- A versatile tool for repair and maintenance work in tight or hard-to-access areas.
- Suitable for use in factories, shipbuilding, and heavy machinery servicing.
Advantages
- Compact and Precise: The 90° angled head allows easy access to restricted areas, ensuring accuracy and efficiency.
- Durable and Reliable: Built to endure heavy-duty applications without compromising performance.
- Enhanced Usability: Ergonomic design minimizes operator fatigue, while the chuck-type mechanism offers flexibility with a wide range of drill bits.
- Low Noise and Vibration: Promotes a smoother and quieter working environment.
- Multi-Material Capability: Performs well on various materials, expanding its range of applications.
Why Choose the ZD2335?
The ZD2335 90° Industrial Angle Drill is designed to deliver exceptional performance, durability, and precision in demanding industrial environments. Its compact angled design and versatile chuck-type mechanism make it the go-to tool for professionals requiring dependable results in tight or intricate spaces. Whether in automotive, aerospace, or general manufacturing, the ZD2335 ensures you do the job efficiently and accurately every time.
Specification:
- Chuck Capacity: 1/8(3) inch(mm)
- Free Speed: 3600 rpm
- Net Weight: 1.9(0.86) lbs(kgs)
- Overall Length: 259 mm
- Avg. Air Cons: 3.5(99) cfm(l/min)
- Sound Pressure: 82 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two Gear Mechanism |
| Model | Spindle Thread inch | Chuck/Collet Capacity inch(mm) | Free Speed rpm | Net Weight lbs(kgs) | Overall Length mm | Avg. Air Cons cfm(l/min) | Sound Pressure dB(A) | Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |  |  |  |
| ZD90T Thread type Spindle Thread: 1/4″-28 | ZD90TL Thread type Spindle Thread: 1/4″-28 | ZD45T Thread type Spindle Thread: 1/4″-28 | ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |  |  |  |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |  |  |  |
| ZD90C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD90CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD45C Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment | ZD45CL Collect type Collect Capacity: (2.4~5.9) inch(mm) 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each attachment |
