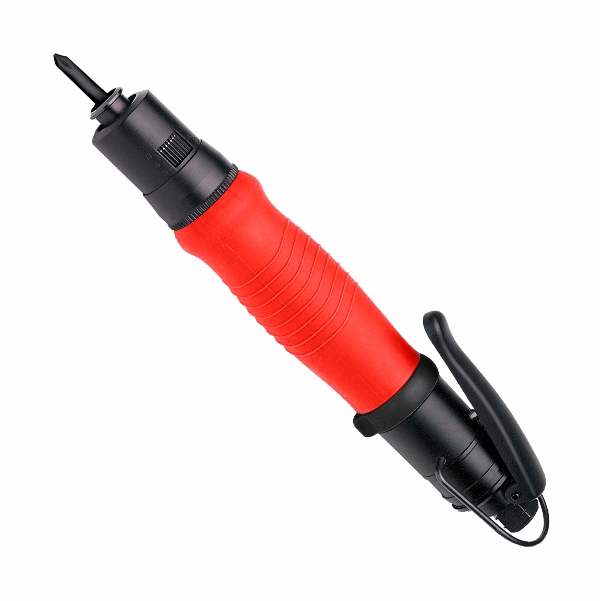

ZB66MC Air Screwdriver / In Line Type
- Torque fix system
- Wide torque range & low vibration
- Patented clutch mechanism
- Patented high output motor
- One hand operation for forward and reverse
Motor Comparison
Patented motor
Traditional motor
Torque schematic diagram
Patented torque control system
Traditional torque control system
Specification:
- Free Speed: 1000 rpm.
- Net Weight: 820 g
- O.A.L: 245 mm
- Dia.: 39 mm
- Air Pressure: 6 Kg/cm3
- Min. air hose bore: 8 mm
- Air Consumption: 0.55 m3/min
- Torque range: 7-65 Kgf-cm
- Standard Deviation: ±3 %
- Fastening Capacity/Machine Screw Dia.: M2.9-M6.4
- Fastening Capacity/Tapping Screw Dia.: M2.6-M5.4
| Model | Free Speed rpm | Weight g | O.A.L mm | Dia. mm | Air Pressure kg/cm³ | Min. air hose bore mm | Air Consumption m³/min | Torque range kgf-cm | Standard Deviation % | Fastening Capacity | |
| Machine Screw Dia. | Tapping Screw Dia | ||||||||||
| ZB21MC | 1000 | 520 | 210 | 31 | 6.0 | 5.0 | 0.20 | 0.5-2 | ±3 | M1.0-M2.2 | M1.1-M1.7 |
| ZB31MC | 1000 | 520 | 210 | 31 | 6.0 | 5.0 | 0.20 | 1-8 | ±3 | M1.7-M3.3 | M1.3-M2.7 |
| ZB41MC | 1800 | 520 | 210 | 31 | 6.0 | 5.0 | 0.28 | 3-17 | ±3 | M2.2-M4.2 | M1.7-M3.2 |
| ZB46MC | 2200 | 520 | 210 | 31 | 6.0 | 5.0 | 0.28 | 3-20 | ±3 | M2.2-M4.5 | M1.7-M3.5 |
| ZB49MC | 1800 | 520 | 210 | 31 | 6.0 | 5.0 | 0.28 | 3-25 | ±3 | M2.2-M4.7 | M1.7-M3.8 |
| ZB51MC | 1000 | 520 | 210 | 31 | 6.0 | 5.0 | 0.28 | 5-30 | ±3 | M2.8-M5.0 | M2.3-M4.0 |
| ZB56MC | 800 | 520 | 210 | 31 | 6.0 | 5.0 | 0.3 | 8-40 | ±3 | M3.3-M5.7 | M2.7-M4.4 |
| ZB59MC | 1700 | 820 | 245 | 39 | 6.0 | 8.0 | 0.55 | 5-45 | ±3 | M2.8-M5.8 | M2.2-M4.7 |
| ZB61MC | 1400 | 820 | 245 | 39 | 6.0 | 8.0 | 0.55 | 7-50 | ±3 | M2.9-M6.0 | M2.6-M4.9 |
| ZB66MC | 1000 | 820 | 245 | 39 | 6.0 | 8.0 | 0.55 | 7-65 | ±3 | M2.9-M6.4 | M2.6-M5.4 |
| ZB71MC | 550 | 820 | 245 | 39 | 6.0 | 8.0 | 0.55 | 15-95 | ±3 | M4.1-M7.0 | M3.1-M6.0 |
| ZB76MC | 300 | 840 | 245 | 39 | 6.0 | 8.0 | 0.55 | 30-180 | ±3 | M5.0-M9.3 | M4.0-M7.2 |
| ZB79MC | 250 | 840 | 245 | 39 | 6.0 | 8.0 | 0.55 | 50-280 | ±3 | M6.0-M11.0 | M4.9-M8.7 |
